D-Link DCS-3220G [44/143] Using the dcs 3220g with an internet browser continued

Click the DDNS & UPnP button from the Configuration screen to access DDNS

& UPnP settings.

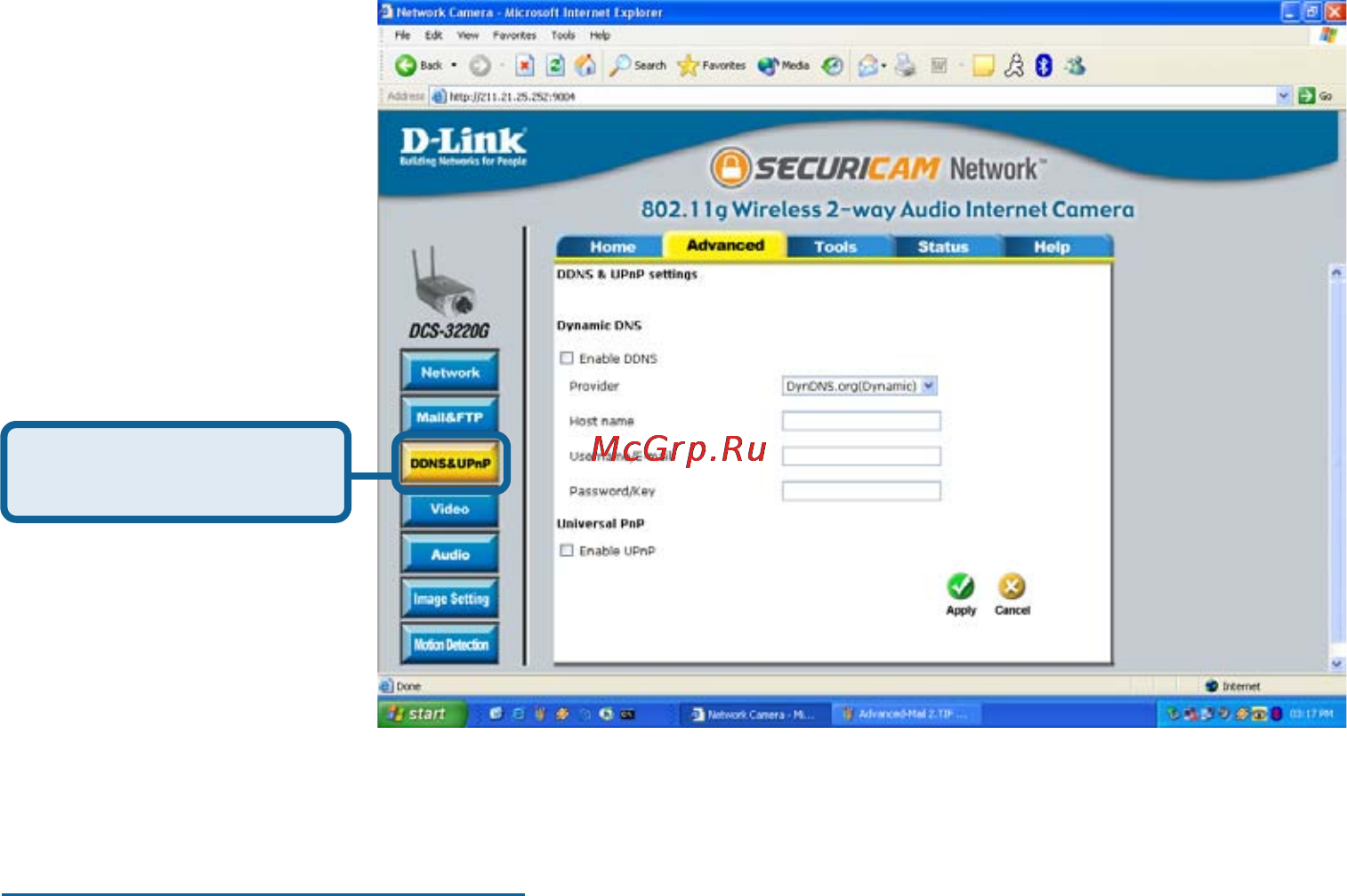

Configuration > Advanced > DDNS & UPnP

Dynamic DNS (DDNS)

Dynamic DNS (Domain Name Service) is a method of keeping a domain name

linked to a changing (dynamic) IP address. With most Cable and DSL

connections, you are assigned a dynamic IP address and that address is used

only for the duration of that specific connection. With the DCS-3220G, you can

set up your DDNS service and the DCS-3220G will automatically update your

DDNS server every time it receives a different IP address. Depending on the

service, this update may take a few hours.

Using the DCS-3220G with an Internet

browser (continued)

Click DDNS &UPnP
