15

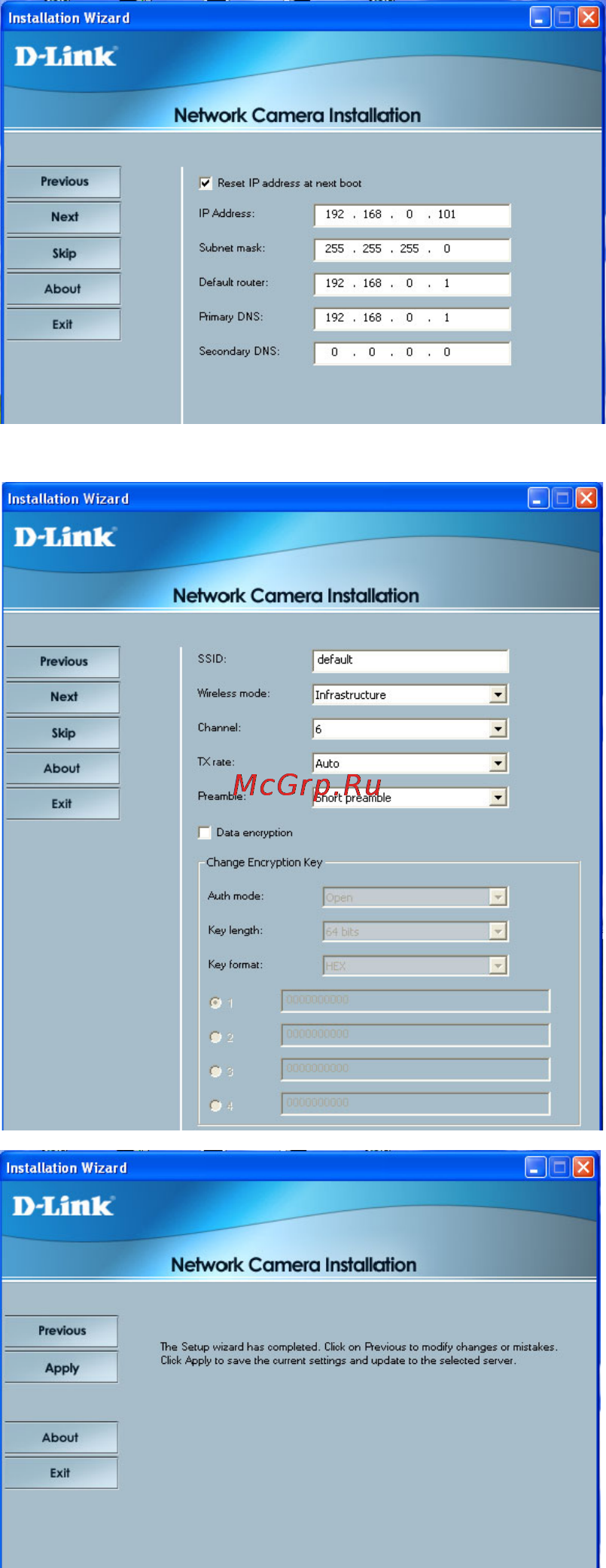

Installation Wizard Screen (continued)
Network Settings -
Here users can configure the
Network Settings for the camera.
Enter the IP address, Subnet mask,
Default router IP, Primary DNS, and
Secondary DNS. Automatically, the
option to reset IP address at boot is
selected. If you would like to save
your IP address settings, make sure
to uncheck this box.
Click Next and then Apply to save
the configured settings. Users can
click Previous to modify changes
or mistakes.
Here users can configure the
Wireless Network Settings for the
camera. Enter the SSID and select
the Wireless mode, Channel, Tx
Rate, and Preamble. Check the
Data Encryption box to enable data
encryption and configure the
settings. These settings are
explained and can also be
configured on the Advanced >
Network screen (page 37) when
configuring the camera via a Web
Browser.
