6
Connections
Antenna
Two antennas are included with the DCS-3220G. These are screwed onto the
antenna connectors on the back panel to provide a connection with a wireless
network.
Ethernet Cable Connector
The Internet Camera’s back panel features an RJ-45 connector for connections
to 10Base-T Ethernet cabling or 100Base-TX Fast Ethernet cabling. This network
port supports the NWay protocol, allowing the Internet Camera to automatically
detect or negotiate the transmission speed of the network.
Reset Button
Reset will be initiated when the reset button is pressed once and held until the
Power LED flashes through its cycle twice.
A reset to factory defaults is initiated when the reset button is pressed
continuously for 5 seconds or when the Power LED changes from green to
red for 2 cycles. (For example you will see the LED turn to red twice, release
the reset button when the LED turns red the second time). The Power LED
will begin to flash indicating that the Internet Camera’s settings are reverting
back to the factory settings, then turn back to green. To reset the camera
press the reset button once and the light will flash orange.
The Ethernet cable included with the DCS-3220G Internet Camera
is a Category 5 “straight through” cable. This is the recommended
cable type when the camera is physically connected to a 100 Mbps
Fast Ethernet network hub or switch.

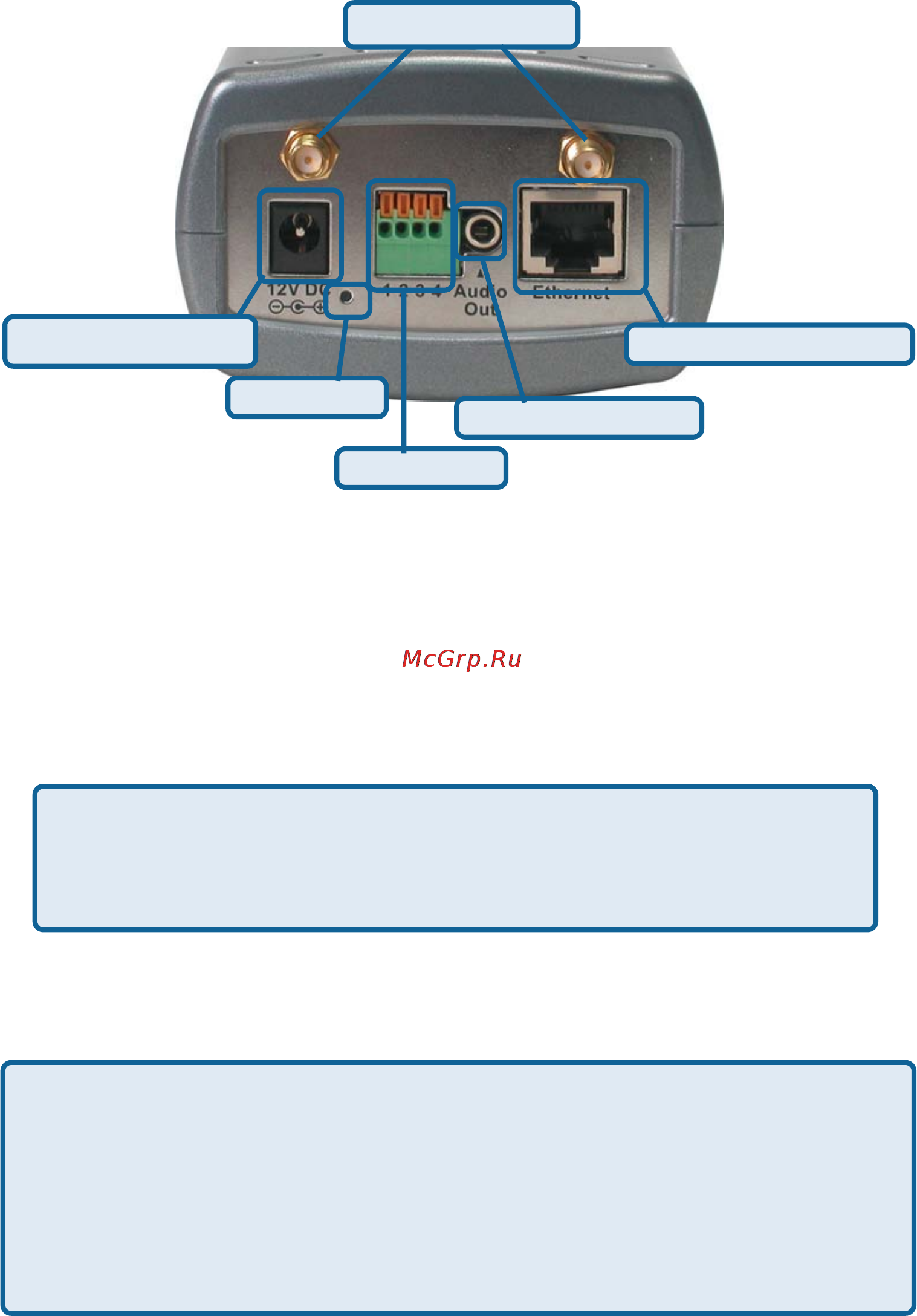

I/O Connector
Ethernet Cable Connector
DC Power Connector
Reset Button
Antenna Connectors
Audio Out Connector
