58
Configuration > Tools > Applications (Continued)

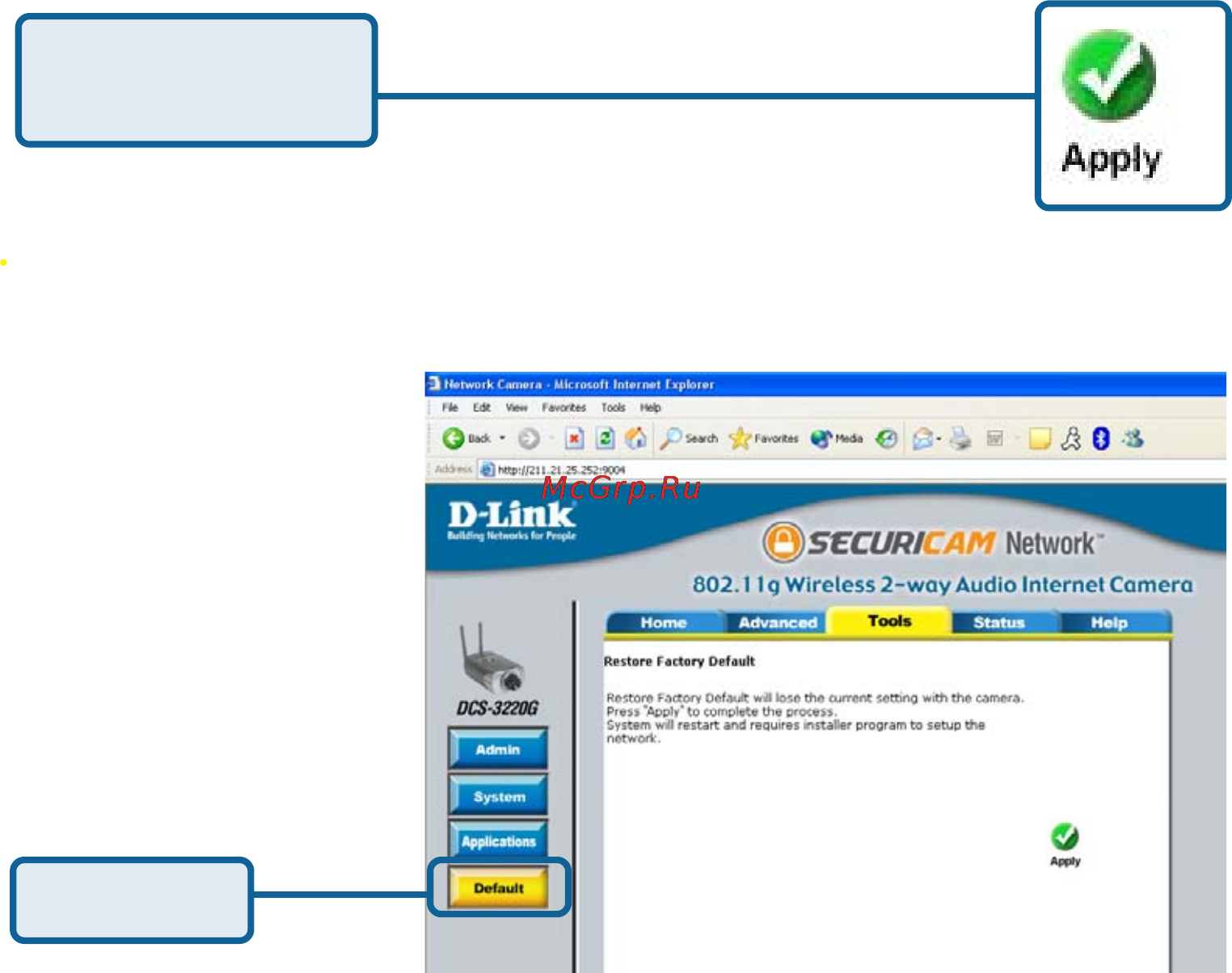

Click on the Default button to access the option to restore to factory default
settings.
Click Apply on this screen to restore factory default settings. This means any
changes made will be lost and the system will be reset to the initial status when
shipped from the factory. After confirmation, the system will restart and require
the Installation Wizard software program to locate the IP address of the DCS-
3220G.
Using the DCS-3220G with an Internet
browser (continued)
Click Apply to make
changes effective
Configuration > Tools > Default
FTP put snapshots with
date and time suffix -
If the suffix is added, the captured date and time
can be easily differentiated from the snapshot file
name in either sequential or event operation. For
instance, “video@20020102030405.jpg” means
the JPEG image was captured at 4 minutes and
5 seconds after 3 o’clock, January 2nd, A.D. 2002.
If the suffix is omitted, the file named “video.jpg”
on the external FTP server will be refreshed at
the specified interval.
Click Default
