D-Link DCS-3220G [3/143] Minimum system requirements
![D-Link DCS-3220G [3/143] Minimum system requirements](/views2/1043917/page3/bg3.png)
3

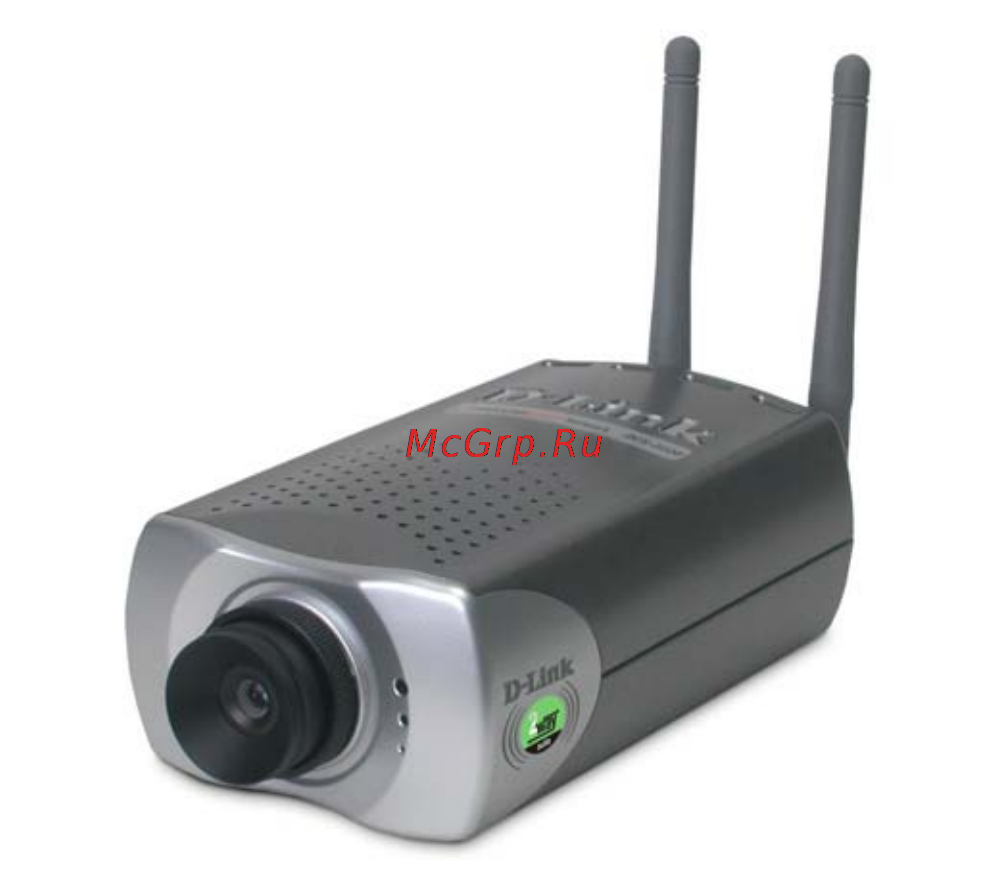

D-Link DCS-3220G Internet Camera
Power Adapter
CD-ROM with installation software and manual
Quick Installation Guide
Camera Stand
Category 5 Ethernet Cable
2 Antennas
Note: Using a power supply with a different voltage than the one included with the
DCS-3220G will cause damage and void the warranty for this product.
Minimum System Requirements:
Internet Explorer 6.x Internet Web Browser
CPU: Pentium 4, 1.7GHz or above
(Pentium 4, 2.8Ghz plus processor with 512Mb memory and a 32MB
video card is required for multiple camera viewing and recording in
IP Surveillance)
Memory Size: 128MB
VGA card resolution: 800 x 600 or above
If any of the above items are missing, please contact your reseller.
Package Contents
