Click Next
Real-time Monitoring
Video Recording to hard disk
High quality video
High video compression ratio
Maximum of 16 cameras with different display layouts
Smart playback
Triggered event browsing
Fast database searching
Configurable automated alarms
Account password protection
Scheduled recording for each camera
Email / FTP video snapshots
AVI file export
Motion detection for each camera
The IP surveillance software on the CD included with the DCS-3220G Internet
Camera converts the DCS-3220G into a powerful, yet flexible, surveillance
system for home or business, with these features:
Installing IP surveillance Software
To install IP surveillance, click on the Install IP surveillance Software on the

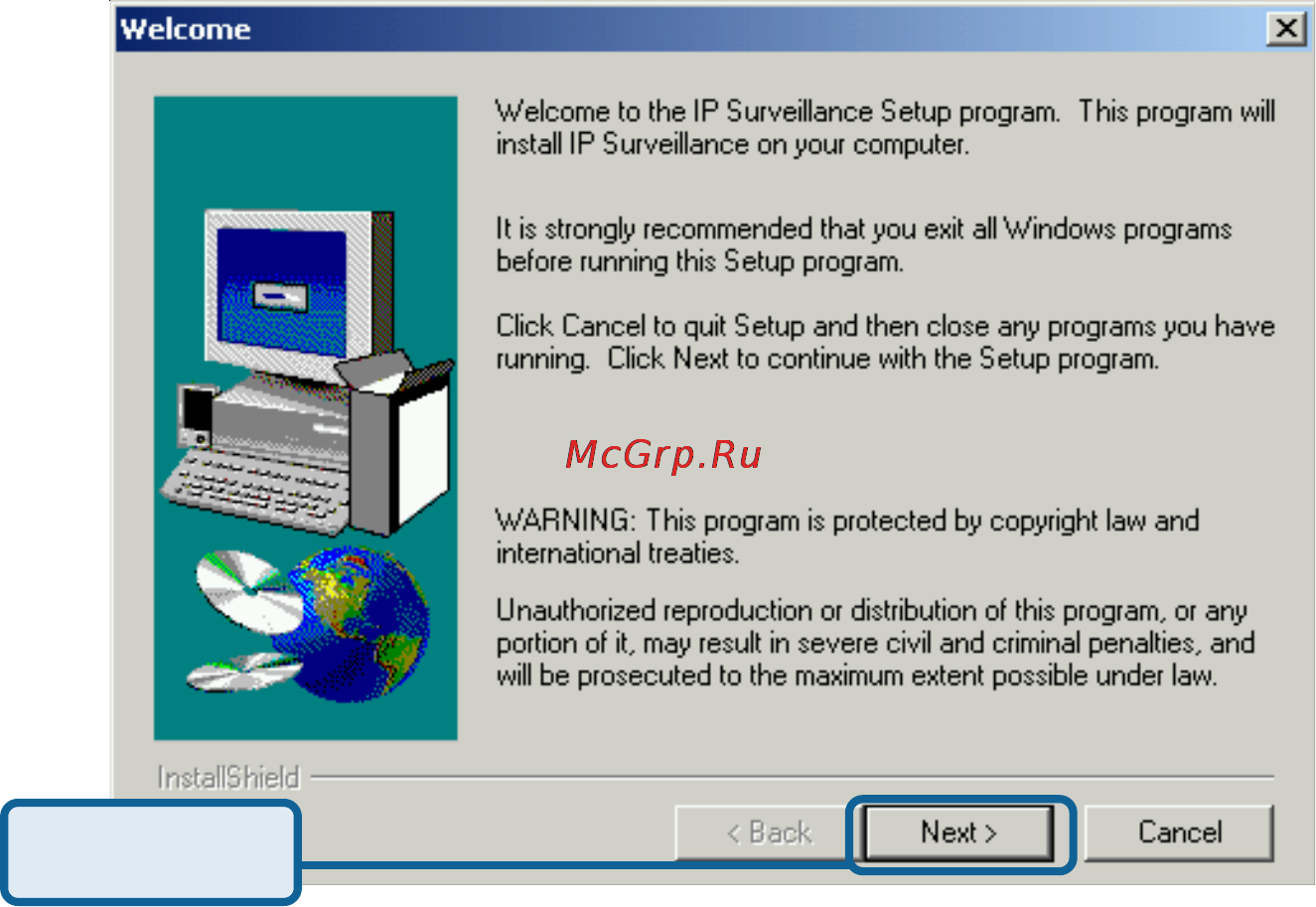

CD included with the Internet Camera. The Welcome screen appears:
