D-Link DCS-3220G [34/143] Using the dcs 3220g with an internet browser continued
![D-Link DCS-3220G [34/143] Using the dcs 3220g with an internet browser continued](/views2/1043917/page34/bg22.png)
34

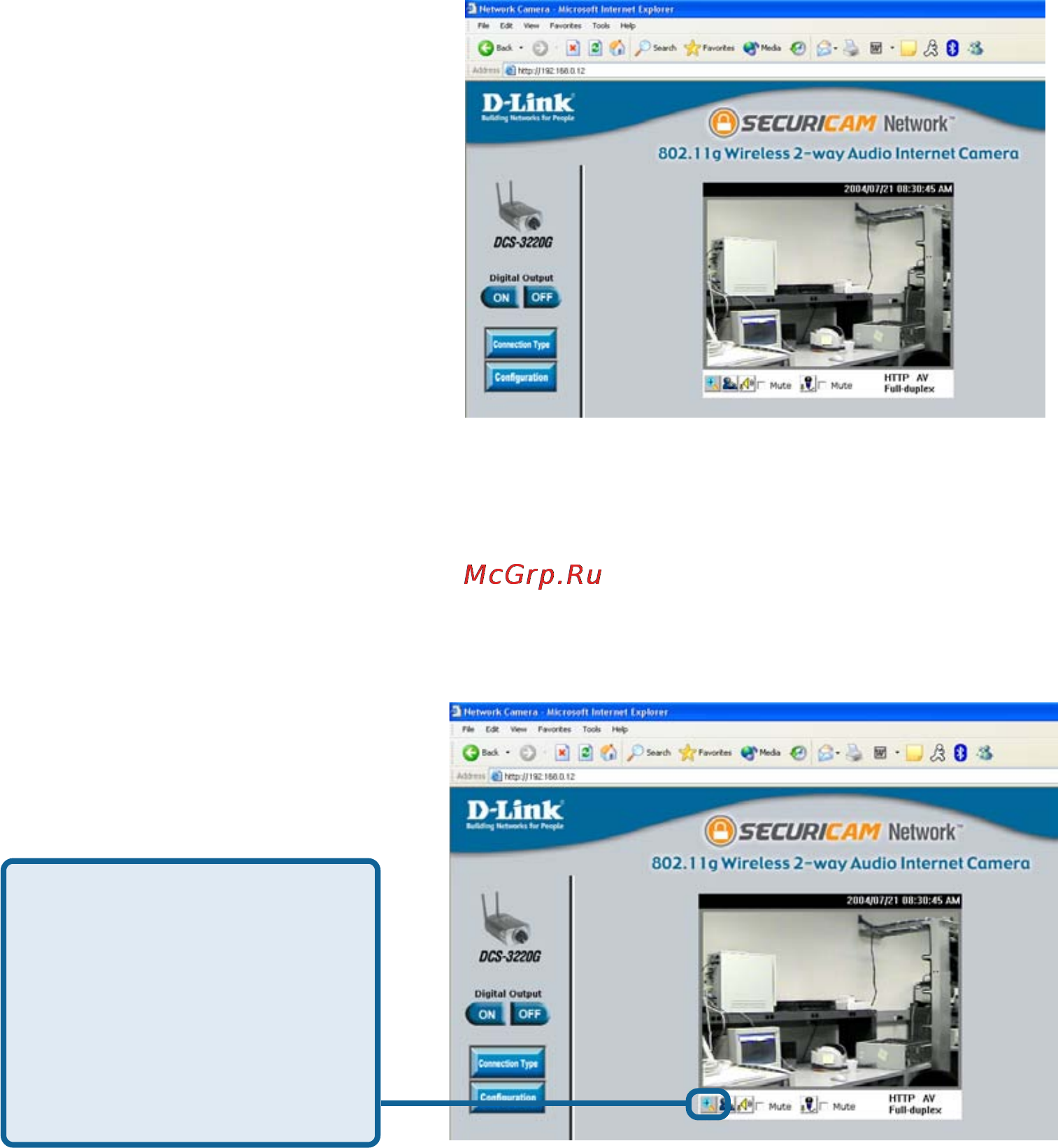

Home Page Screen
The image from the DCS-3220G should be visible from the Home page on your
computer monitor. Below the image are controls that allow you to control zoom
and two way audio functions.
Push/Toggle – Push to enable
the speaker. You can set the
speaker button operation to
either Push or Toggle on the
Connection Type screen. For
additional information, please
refer to the section titled Home
> Connections Screen (page
36).
Speaker Volume Control –
Click to increase or decrease
speaker volume.
Mute Speaker – Click to mute
the speaker.
Microphone Volume Control – Click to increase or decrease microphone
volume.
Mute Microphone – Click to mute the camera’s microphone.
Click the Zoom button
below the image to
display the digital zoom
control panel. Using the
bar, you can select to
view the image up to
400% of the original size.
+
– Opens digital zoom window.
Using the DCS-3220G with an Internet
browser (continued)
