93
Using IP surveillance Software (continued)
IP surveillance includes DI/DO control (Digital Input / Digital Output) control
and an alert message receiver. Each of these are described in detail below.
DI/DO Control

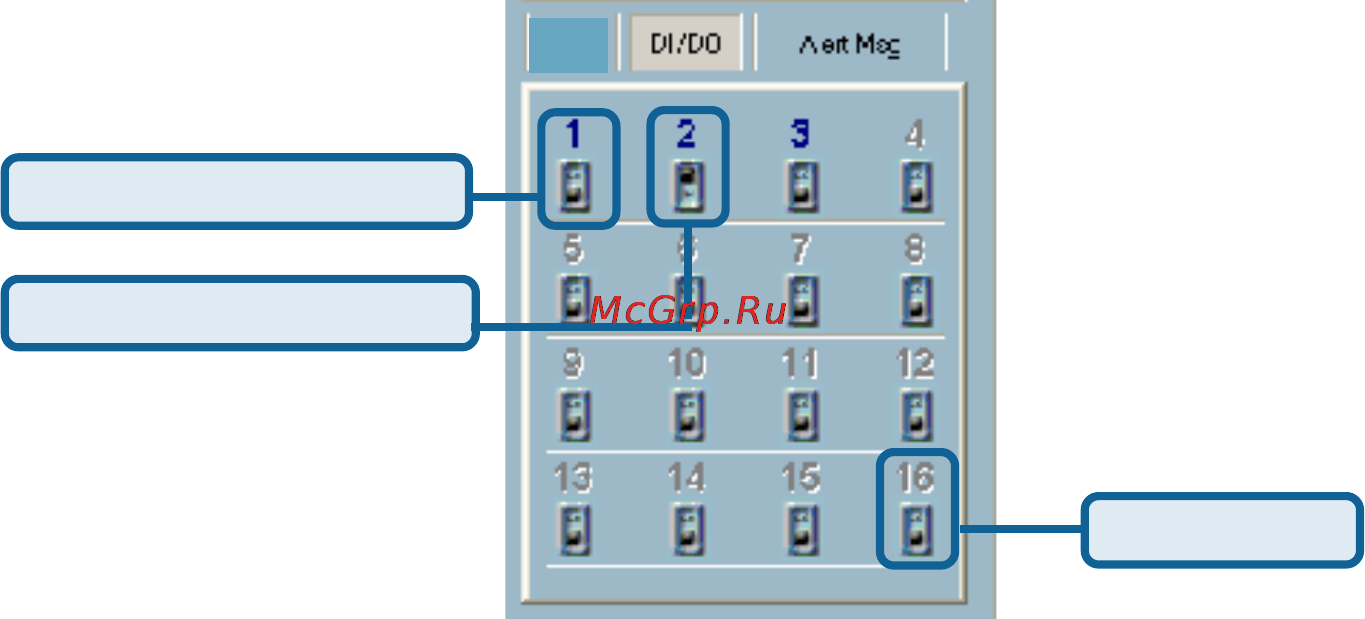

Clicking on the “DI/DO” button shown below, you can switch to the DI/DO
controls. The color of the channel number indicates the status of the camera’s
DI (Digital Input). You can click the “Switch button” to change the HI/LOW state
of the DO (Digital Output). With these features, you can monitor the remote
sensor input from DI and also trigger the camera by DO switch
.
When the color of a DI/DO channel number is gray, that means the video channel
has not yet been connected to a camera.
Monitor Program (continued)
Set digital output to LOW
Set digital output to HIGH
No connection
