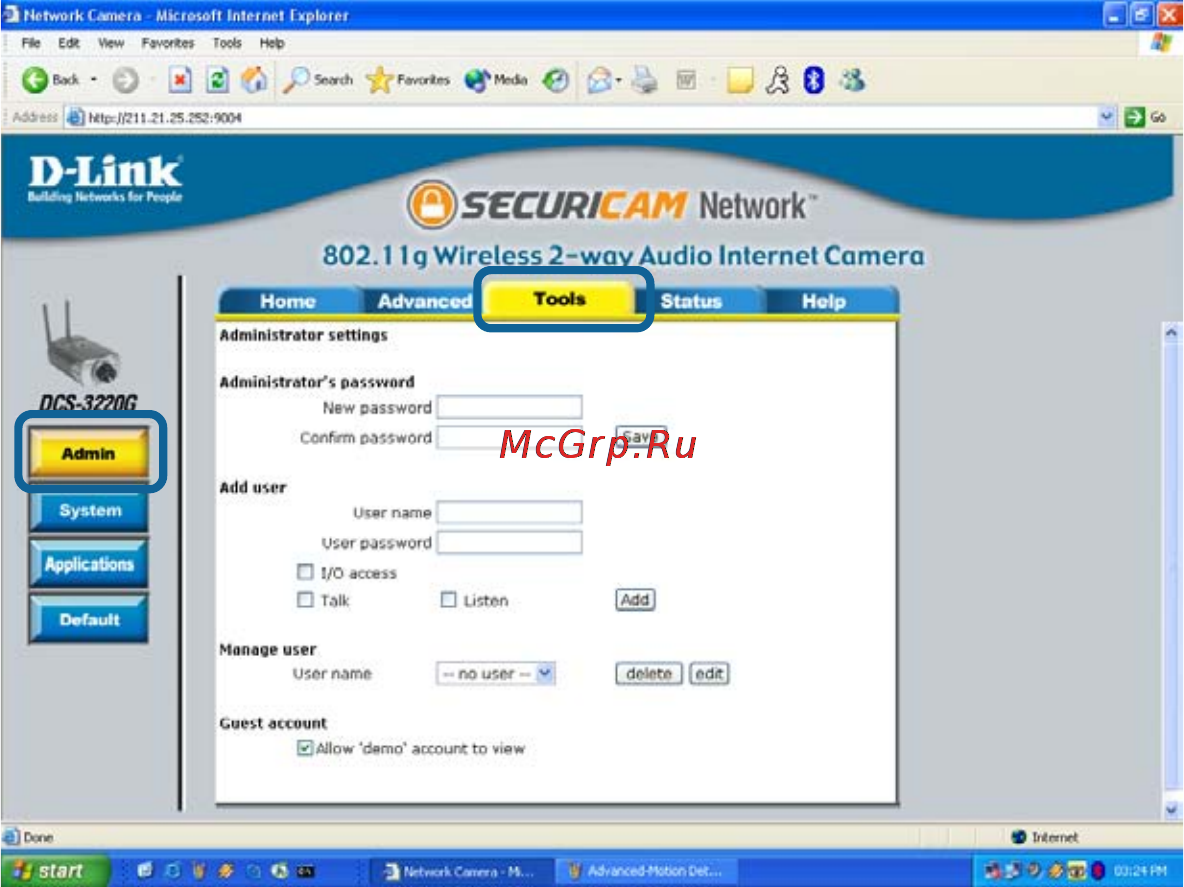

Configuration > Tools > Admin
Click on the Tools tab to access 4 utility screens for controlling and
administering the DCS-3220G. The default screen in Tools is the Admin screen.
The DCS-3220G is manufactured without any passwords by default. This allows
the ability to access the DCS-3220G (including the Configuration) by anyone
as long as the IP address is known. It is recommended that you enter a password
to restrict others from accessing your camera.
Type a password in the New Password field to enable protection, and then
confirm the password in Confirm Password field.
This password is used to identify the administrator. You can add accounts with
User name and User Password for other users in the Add user section.
Using the DCS-3220G with an Internet
browser (continued)
You can provide up to twenty accounts for other users / visitors. Each account
identifies the access right. This allows multiple visitors to share the same account
of different levels. An option to Permit to access DI/DO (Digital In/Digital Out)
is provided for each account. Some users may need to be prohibited from
controlling your attached security devices.
