9
Installation Wizard
After you have successfully completed the hardware installation of the
DCS-3220G Internet Camera, it is necessary to install software to configure
and operate the camera. The first step is to run the Installation Wizard program
on the CD. Installation Wizard allows you to use the Internet Camera with your
Internet browser.
After the Installation Wizard software program is completed, you will have an
operating and controllable Internet Camera. From your Internet Explorer Web
browser you will be able to access the video and sound from the Internet camera.
The camera has a built-in Web server. This Web server will allow the camera to
access the Internet without being attached to a computer and permits users to
view the video and audio remotely.
However, it is necessary to install the IP surveillance software from the enclosed
CD to create a truly powerful monitoring and surveillance system. The following
section will detail the installation of the Installation Wizard and the IP
surveillance software.
Installing the Installation Wizard program

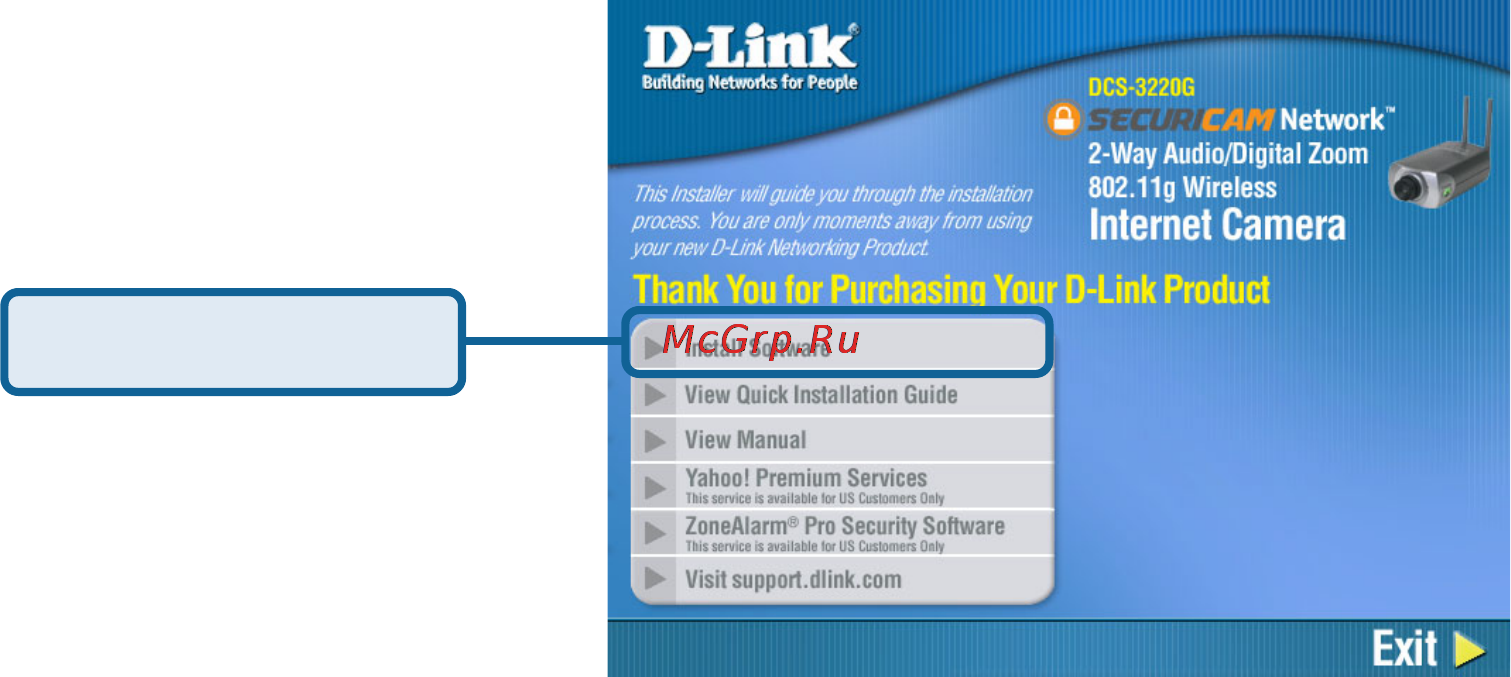

Insert the CD that is included with the DCS-3220G Internet Camera. The
DCS-3220G installation menu will start up automatically from the CD. If the CD
does not startup automatically (the Windows operating system can turn this
function off, for example), go to Start > Run and type D:\autorun (if D:\ is your
cd-rom drive) to access the installation menu shown below:
Click Install Software
