78
D-Link DWL-8200AP User Manual

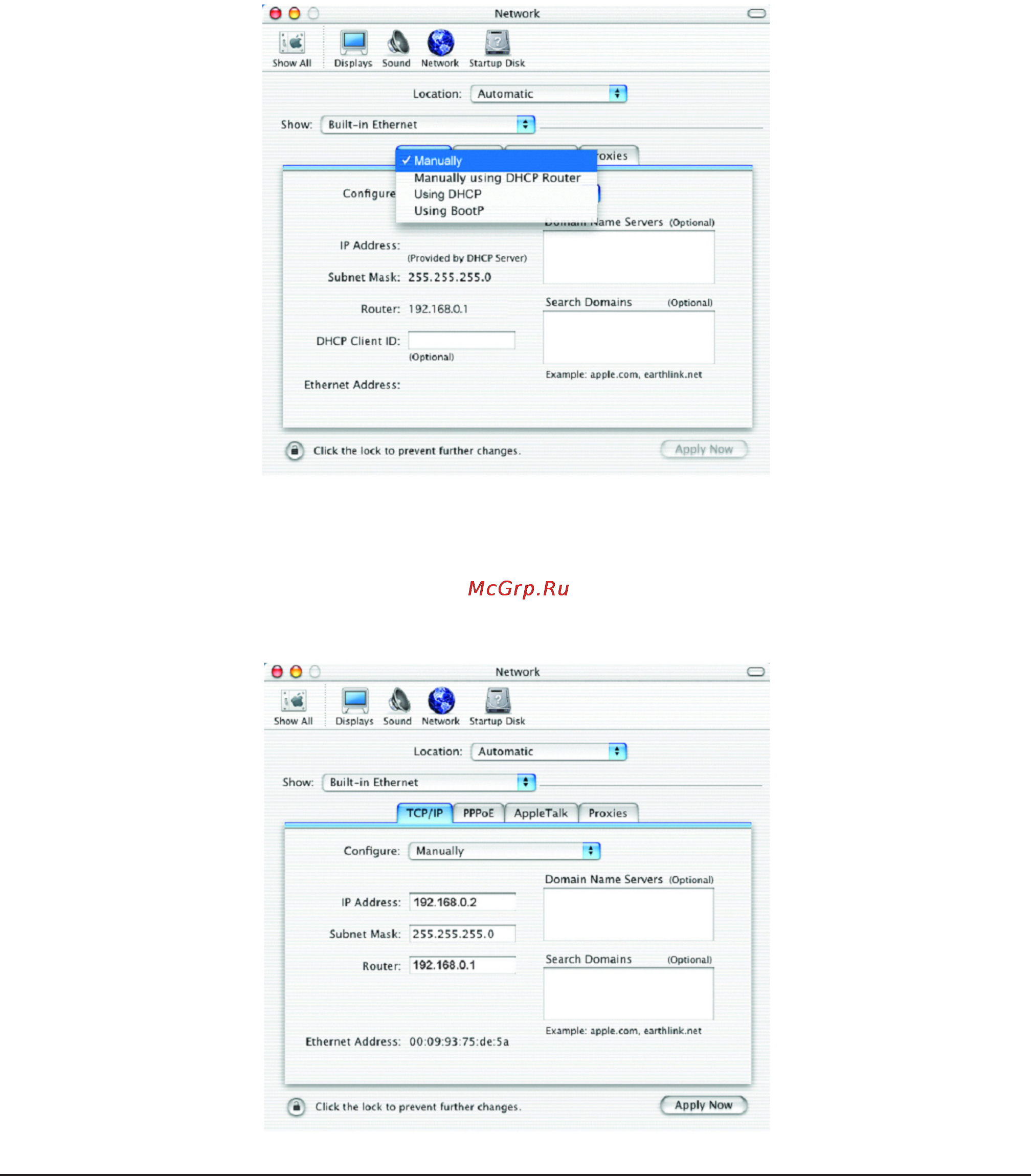

Select Built-in Ethernet in the Show pull-down menu.
Select Manually in the Configure pull-down menu.
Input the Static IP Address, the Subnet Mask and the Router IP Address in the
appropriate fields.
Click Apply Now.
