79
D-Link DWL-8200AP User Manual

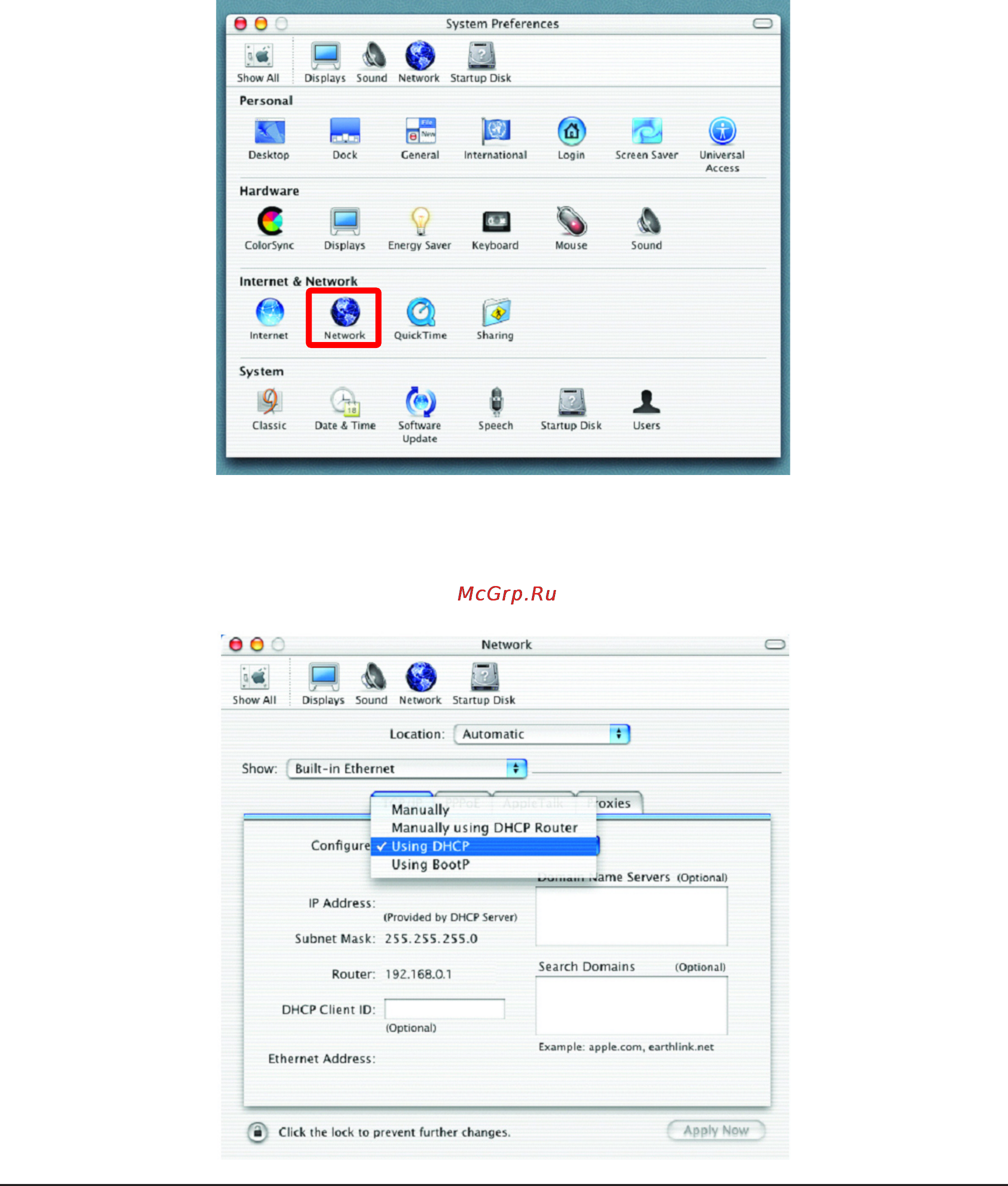

Go to the Apple Menu and select System Preferences.
Click on Network.
Select Built-in Ethernet in the Show pull-down menu.
Select Using DHCP in the Configure pull-down menu.
