83
D-Link DWL-8200AP User Manual

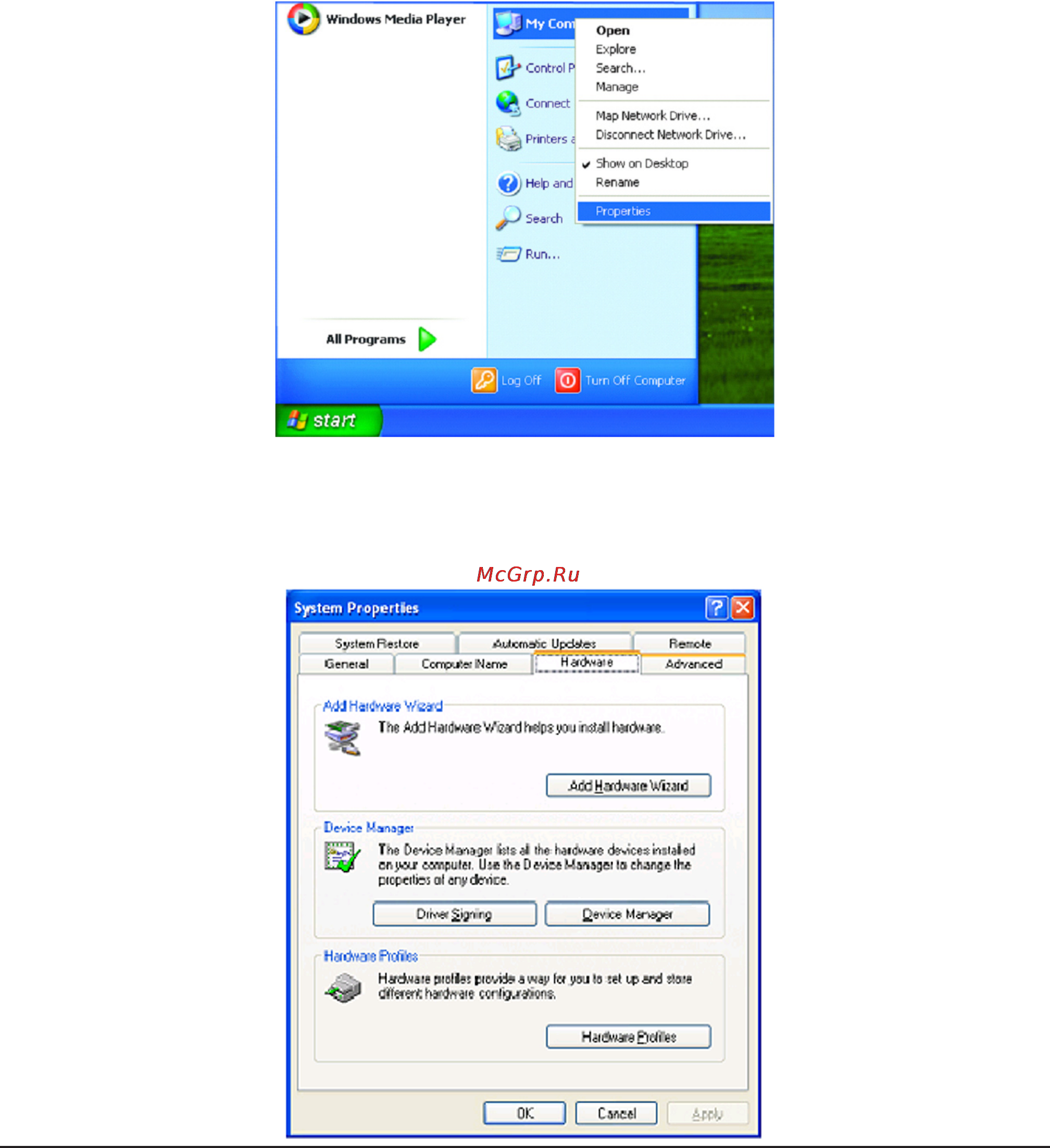

Go to Start > My Computer > Properties.
Select the Hardware Tab.
Click Device Manager.
3. Check that the drivers for the network adapters are installed properly.
You may be using different network adapters than those illustrated here, but this procedure will
remain the same, regardless of the type of network adapters you are using.
