84
D-Link DWL-8200AP User Manual

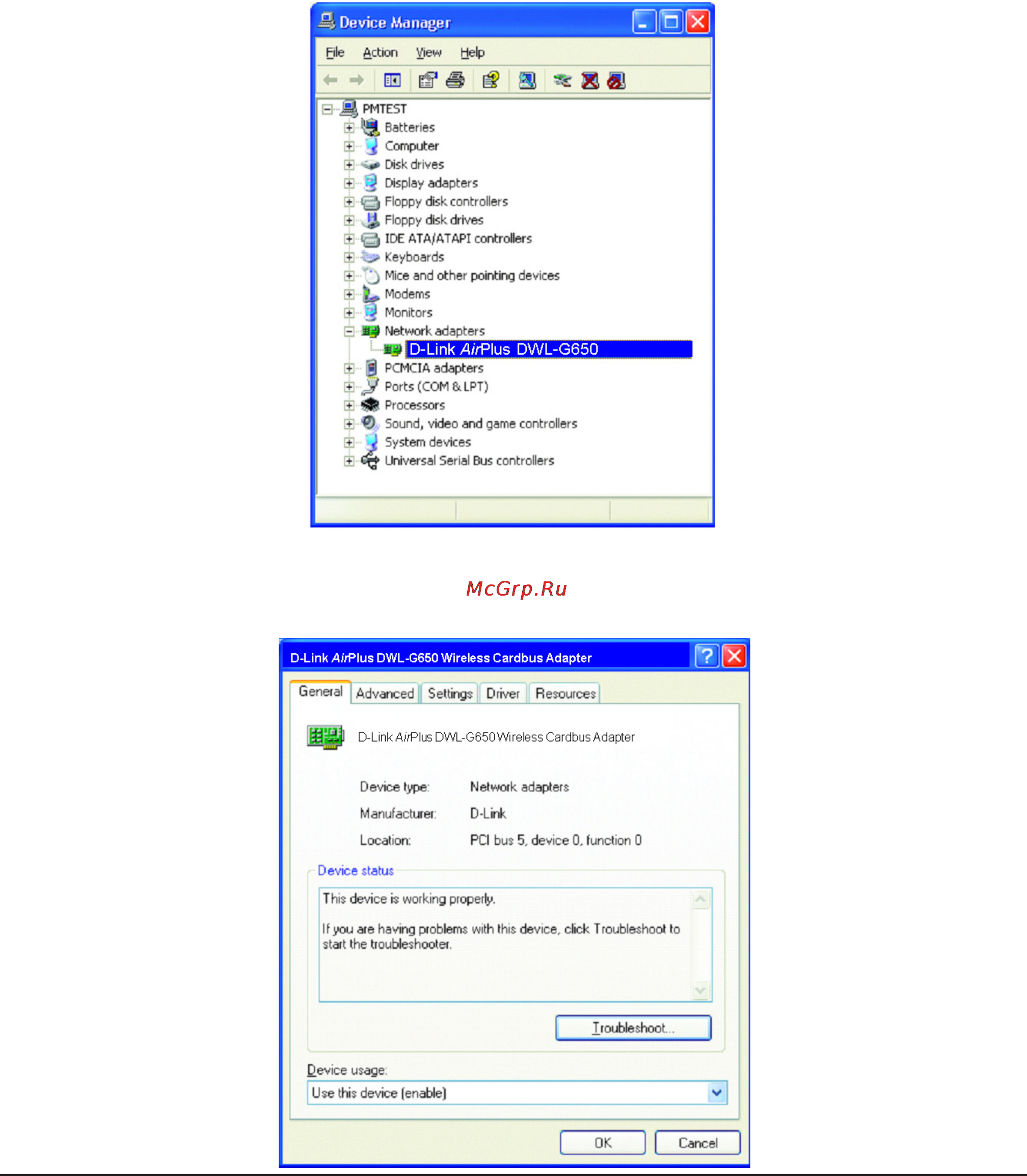

Double-click on Network Adapters.
Right-click on D-Link AirPlus DWL-G650 Wireless Cardbus Adapter. (In this
example we use the DWL-G650; you may be using other network adapters, but the
procedure will remain the same.)
Select Properties to check that the drivers are installed properly.
Look under Device Status to check that the device is working properly.
Click OK.
