Fluke 19xC-2x5
Users Manual
92

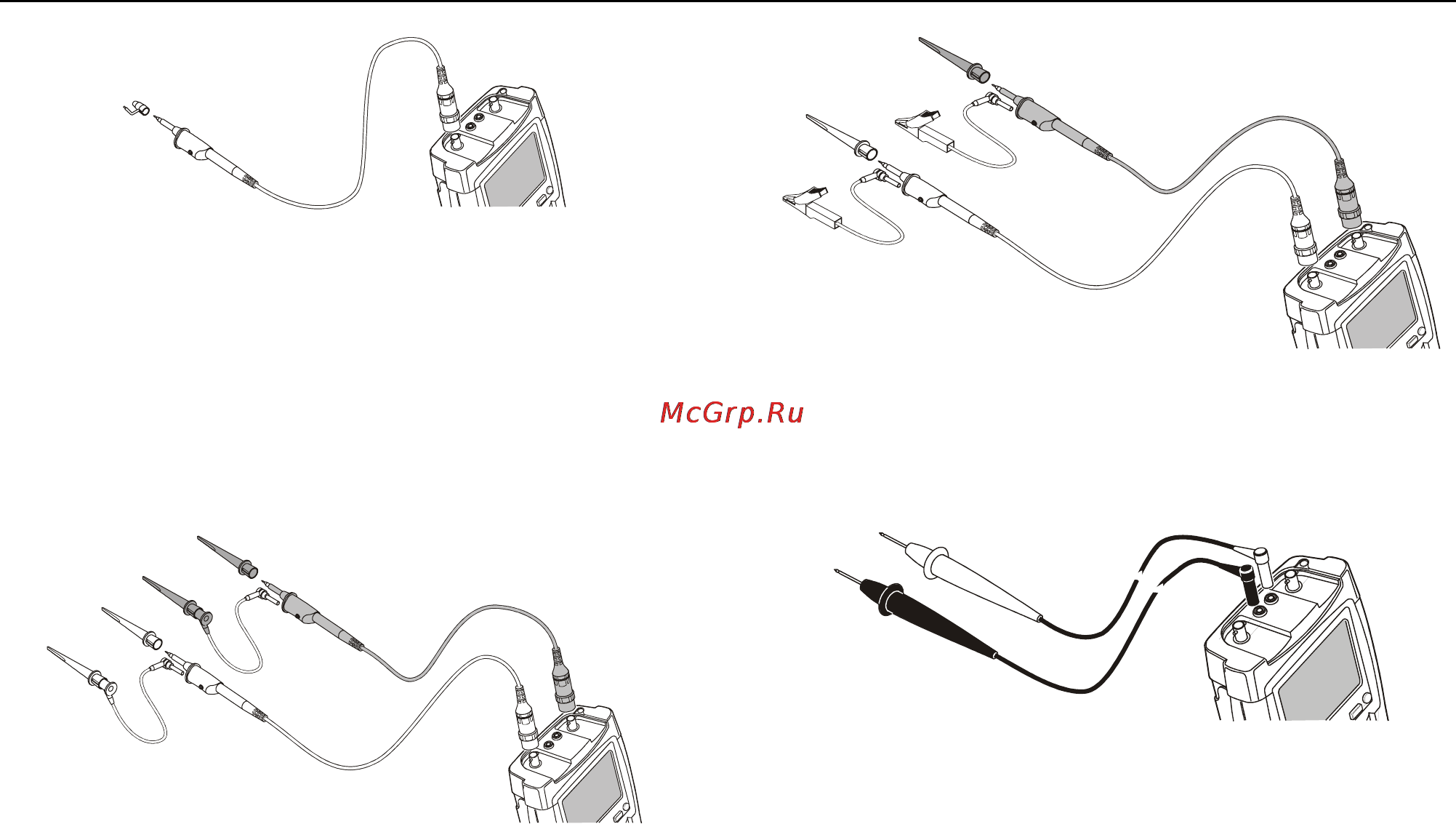

Figure 51. HF Voltage Probe Connection Using
Ground Spring
Warning
To avoid electrical shock or fire, do not
connect the ground spring to voltages higher
than 30 Vrms from earth ground.
Figure 52. Electronic Connections for Scope
Measurements Using Hook Clips and Hook Clip
Grounding
Figure 53. Electronic Connections for Scope
Measurements Using Hook Clips and Alligator Clip
Grounding
Figure 54. Manual Probing for Meter Measurements
using the Test Lead Set
