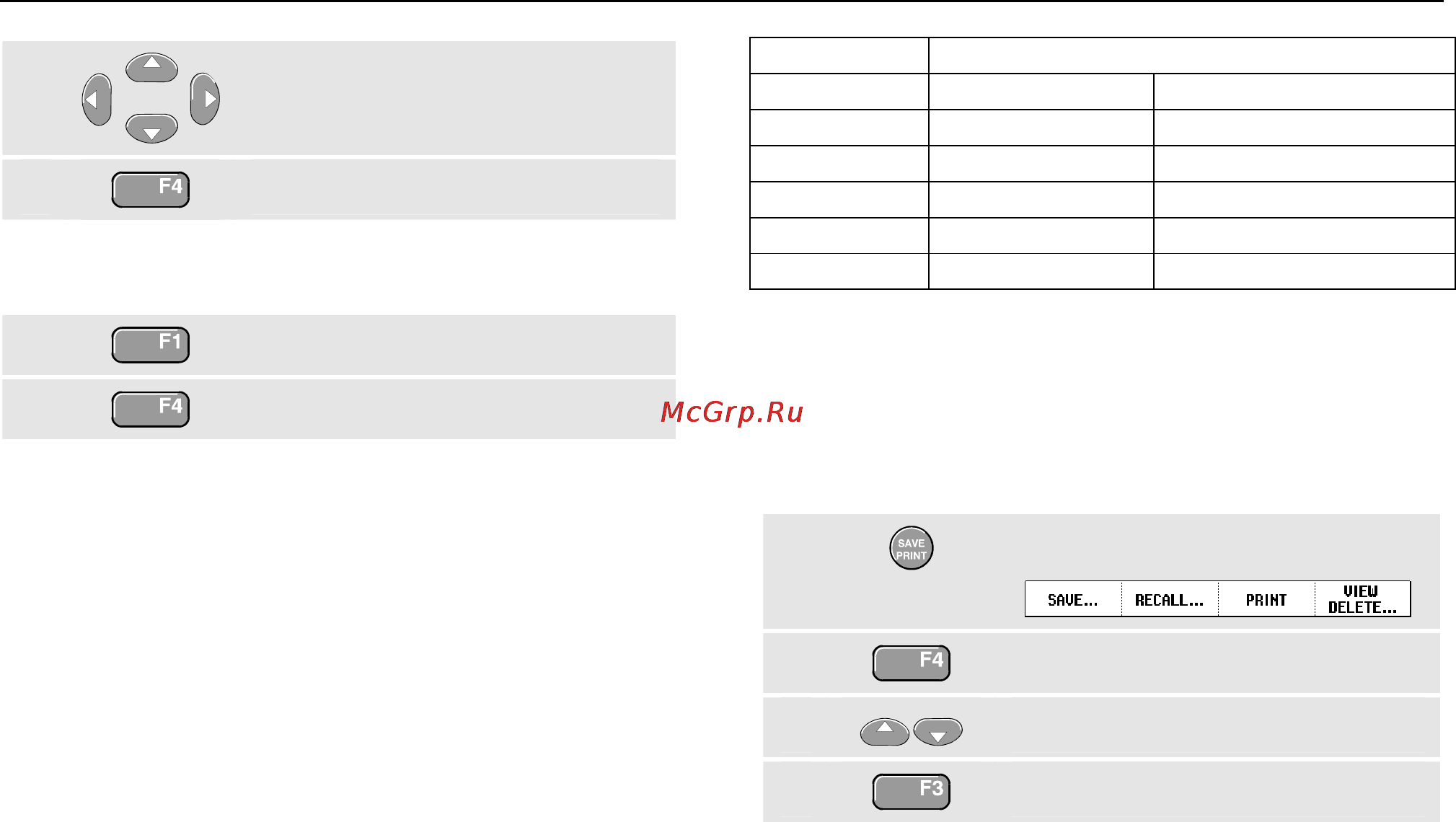

Using Memory, PC and Printer
Saving and Recalling
7
85
6
Select another character.
Repeat 5 and 6 until done.
7
Save the actual screen.
To use the default name generated by the test tool,
continue from step 4 as follows:
5
Use default name.
6
Save the actual screen.
Notes
The two record+setup memory locations store more than
what is just visible on the screen. In TrendPlot or scope
record mode the full recording is saved. In scope mode
you can save all 100 replay screens in a single
record+setup memory location. The table below shows
what you can store for the various test tool modes.
To save a Trendplot press STOP first.
Mode Memory locations
15x ‘screen+setup’ 2x ‘record+setup’
METER setup+1screen N/A
SCOPE setup+1screen setup+100 replay screens
SCOPE REC setup setup+record data
TRENDPLOT setup setup+trendplot data
BUSHEALTH setup+1 screen *) N/A
*) in eye pattern mode and persistence mode the most
recently written trace will be saved, not all persistence
traces.
Deleting Screens with Associated Setups
To delete a screen and associated setup, do the following:
1
Display the SAVE/PRINT key labels.
2
Open the View/Delete menu.
3
Highlight a screen+setup
4
Delete the saved screen+setup.
