Fluke 19xC-2x5C
Users Manual
42

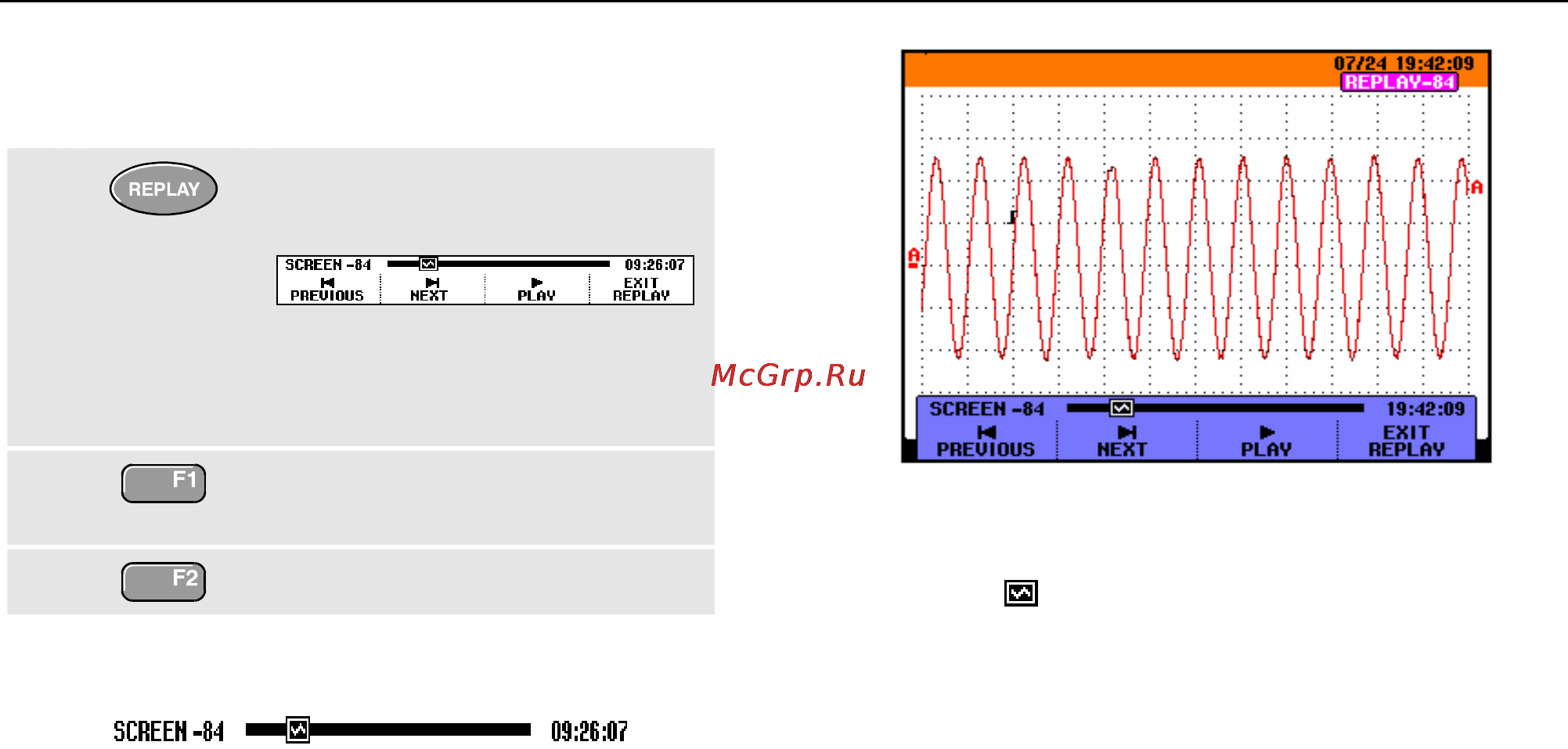

Replaying Step-by-Step
To step through the last scope screens, do the following:
1
From scope mode, open the
REPLAY menu.
Observe that the trace is frozen
and that REPLAY appears at the
top of the screen (see Figure 22).
2
Step through the previous
screens.
3
Step through the next screens.
Observe that the bottom of the waveform area displays the
replay bar with a screen number and related time stamp:
Figure 22. Replaying a Waveform
The replay bar represents all 100 stored screens in
memory. The icon represents the picture being
displayed on the screen (in this example: SCREEN -84). If
the bar is partly white, the memory is not completely filled
with 100 screens.
From this point you can use the zoom and cursor functions
to study the signal in more detail.
