Fluke 19xC-2x5C
Users Manual
82
Note
Changed limits will persist until:
- you change them again,
- you reset the test tool; resetting will restore the
default limits.

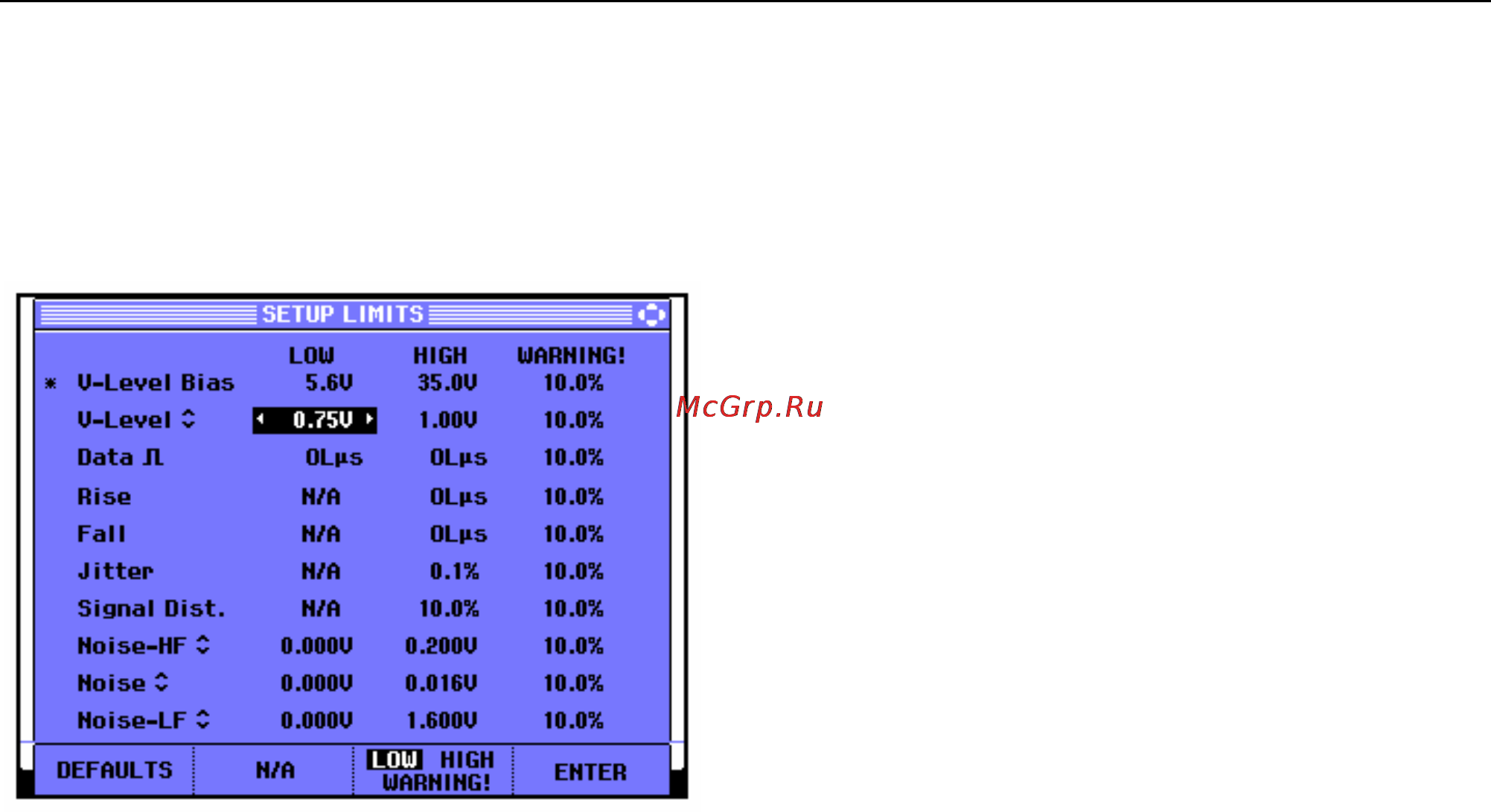

Figure 47. Setup Limits Menu Screen
Saving and Recalling Test Limits
You can save a screen, plus the test setup with (adjusted)
test limits, plus the most recent eye pattern trace as a new
dataset. By recalling this dataset you can do a bus test
according to your own pre-defined test limits.
Refer to chapter 7 ‘Saving and Recalling Datasets’.
