Fluke 190 [105/159] Using the tilt stand

Tips

Using the Tilt Stand

The test tool is equipped with a tilt stand, allowing viewing

from an angle while placed on a table. From this position

you can access the OPTICAL PORT at the side of the test

tool. The typical position is shown in

Figure 59.

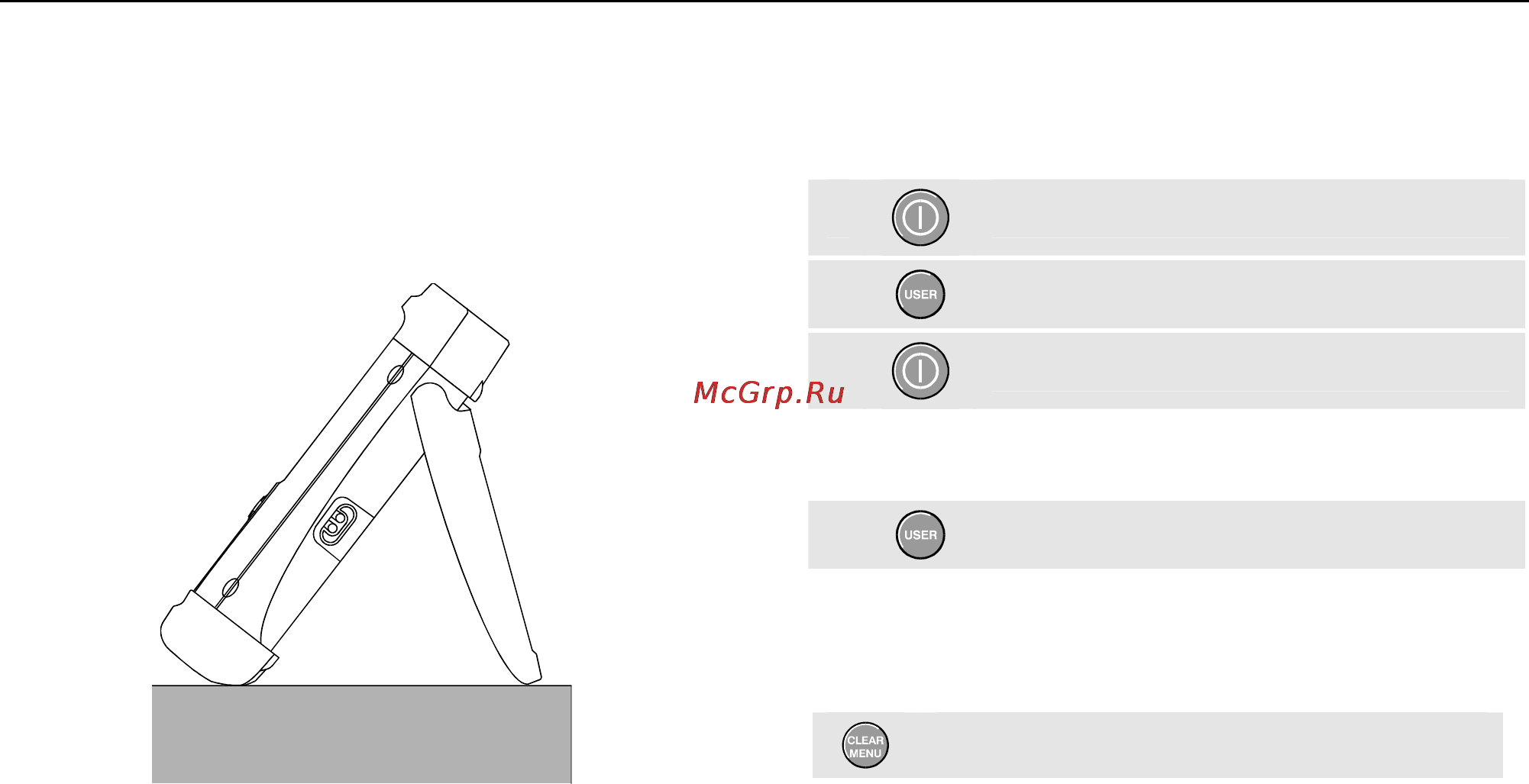

Figure 59. Using the Tilt Stand

Resetting the Test Tool

If you want to reset the test tool to the factory settings, do

the following:

Turn the test tool off.

Press and hold.

Press and release.

The test tool turns on, and you should hear a double beep,

indicating the reset was successful.

Release.

Suppressing Key Labels and Menu’s

You can hide a menu or key label at any time:

Hide any key label or menu.

To display menus or key labels, press one of the yellow

menu keys, e.g. the

SCOPE key.
