Fluke 190 [33/159] Comparing waveforms

Using The Scope

Acquiring Waveforms

Comparing Waveforms

You can display a fixed reference waveform with the

actual waveform for comparison.

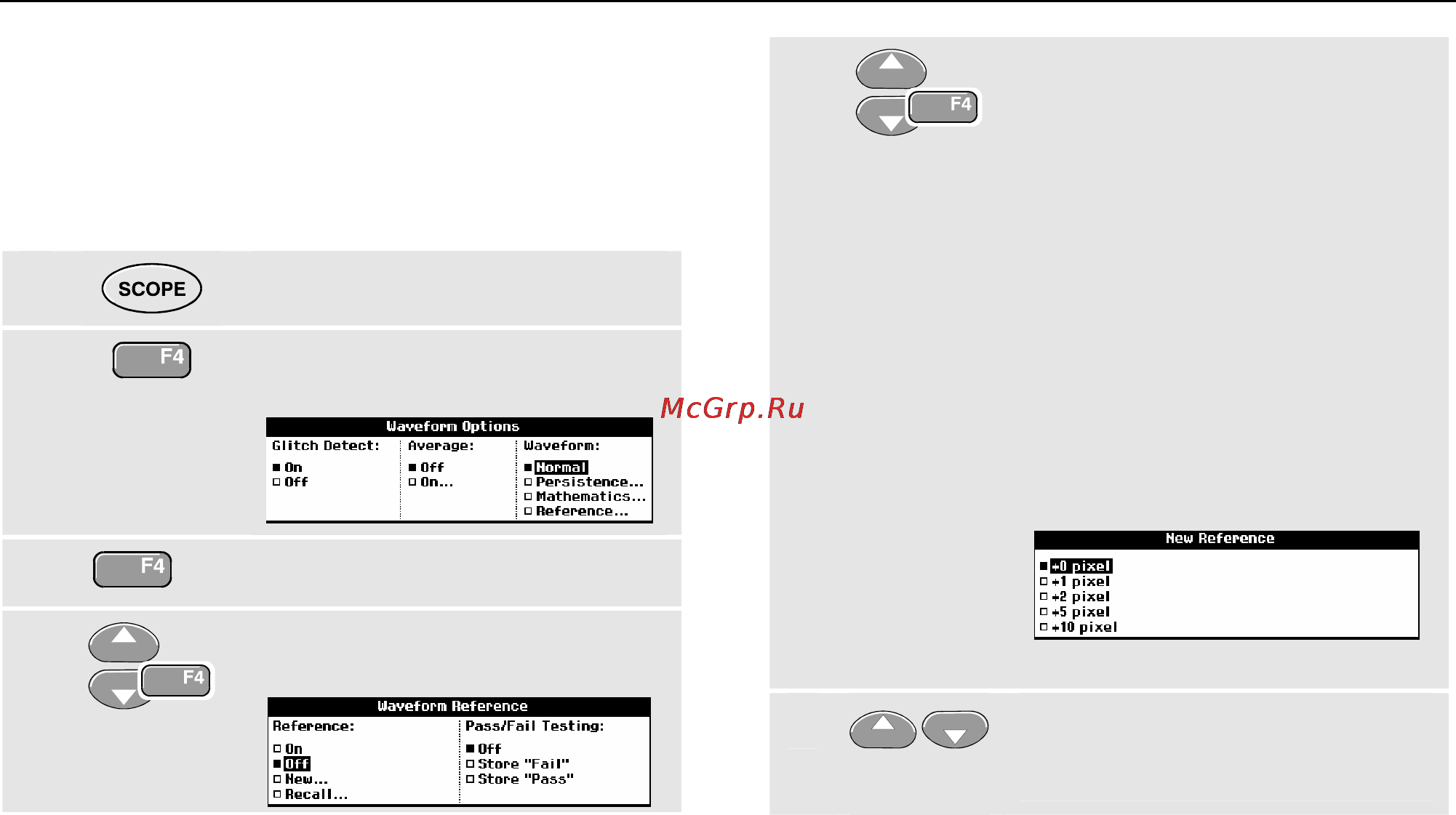

To create a reference waveform and to display it with the

actual waveform, do the following:

Display the SCOPE key labels.

Open the Waveform Options

menu.

Jump to the Waveform field.

Select Reference… to open the

Waveform Reference menu.

Select On to display the reference

waveform. This can be:

- the last used reference waveform

(if not available no reference

waveform will be shown).

- the envelope waveform if the

persistence function Envelope is

on.

Select Recall… to recall a saved

waveform (or waveform envelope)

from memory and use it as a

reference waveform.

Select New… to open the New

Reference menu.

Continue at step 6.

Select the width of an additional

envelope to be added to the

momentary waveform.
