Fluke 19xC-2x5C
Users Manual
A-12
RS-485 Bus.
The RS-485 definition specifies differential (balanced)
data lines that are referenced to a ground level. Because
of this, noise immunity is better than for RS-232. The
impedance between the lines is 120 Ω. RS-485 allows for
multiple transmitters and receivers to be connected to the
same bus. Data transmission is adressed to a dedicated
receiver. Data traffic is not continuous.

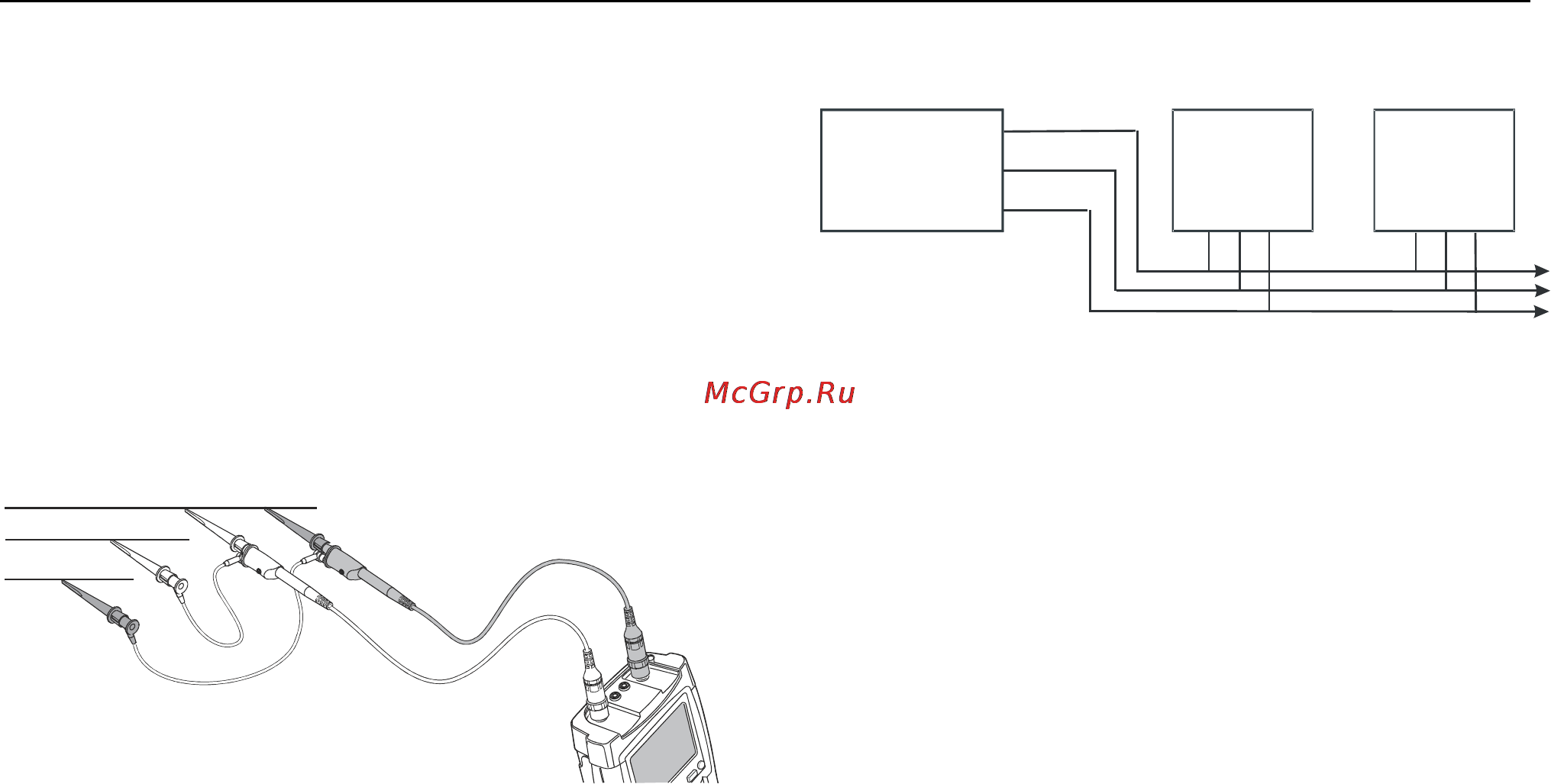

To check this bustype, ScopeMeter Channel A and B are
on and DC coupled. The recommended probes are the
Fluke 10:1 probes. Connect the probes as shown below.
DATA
+
DATA -
DATA GND
RS-485 bus system layout is shown in the figure below.
CONTROLLER
DEVICE 1
DEVICE 2
DATA +
DATA -
GND
Modbus IEA-485/-RS-485
