Fluke 19xC-2x5C
Users Manual
102
Charging the Batteries
At delivery, the NiMH batteries may be empty and must be
charged for 4 hours (with the test tool turned off) to reach full
charge. When fully charged, the batteries provide 4 hours
of use.
When battery power is used, the battery indicator at the
top of the screen informs you about the condition of the
batteries. The battery symbols are:
. The
symbol indicates that there are typically five minutes
of operating time left.
To charge the batteries and power the instrument, connect
the battery charger as shown in
Figure 60. To charge the
batteries more quickly, turn off the test tool.
Caution
To avoid overheating of the batteries during
charging, do not exceed the allowable
ambient temperature given in the
specifications.
Note
No damage will occur if the charger is connected
for long periods, e.g., during the weekend. The
instrument then automatically switches to trickle
charging.

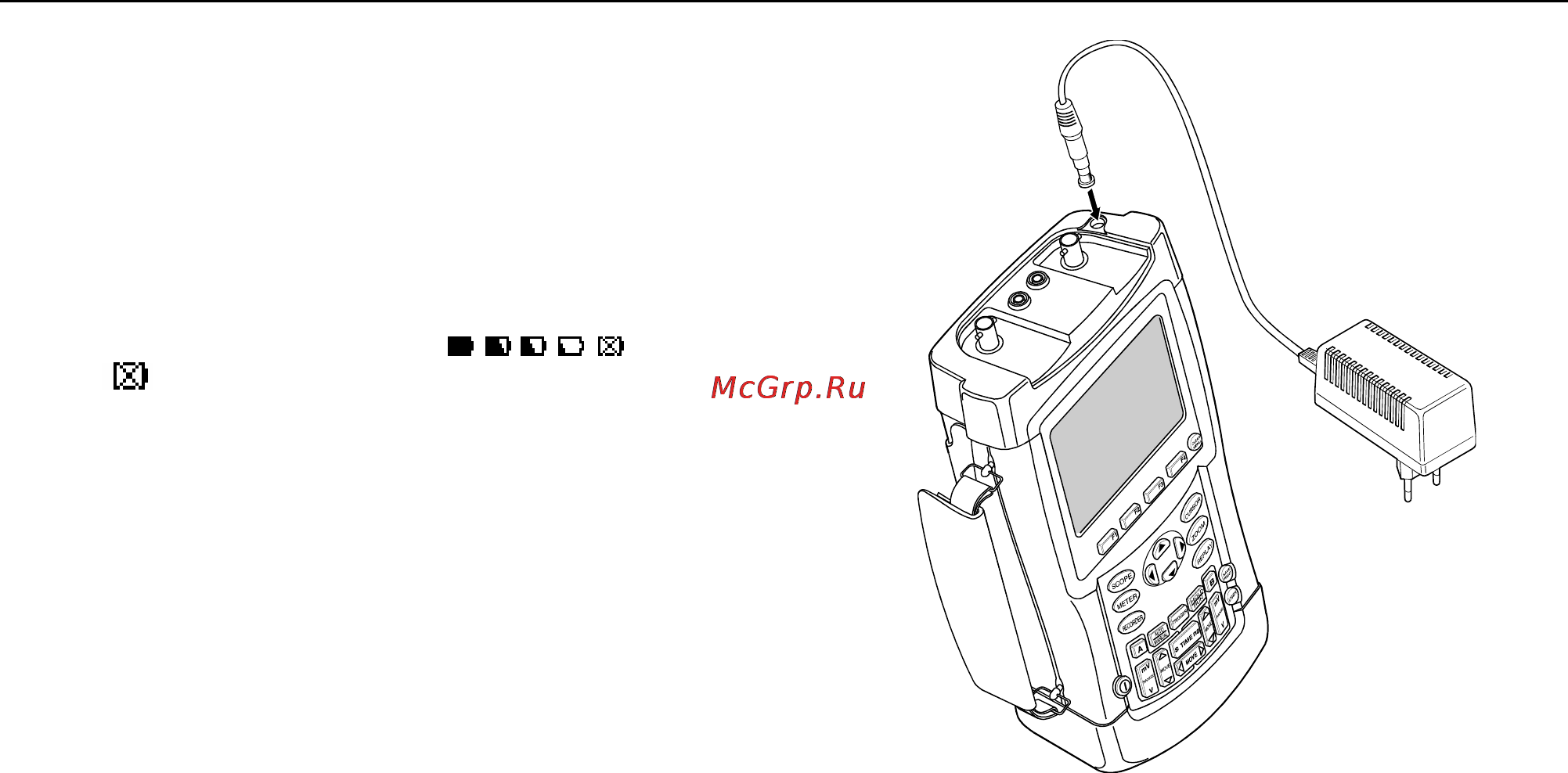

Figure 60. Charging the Batteries
