Fluke 19xC-2x5C
Users Manual
106

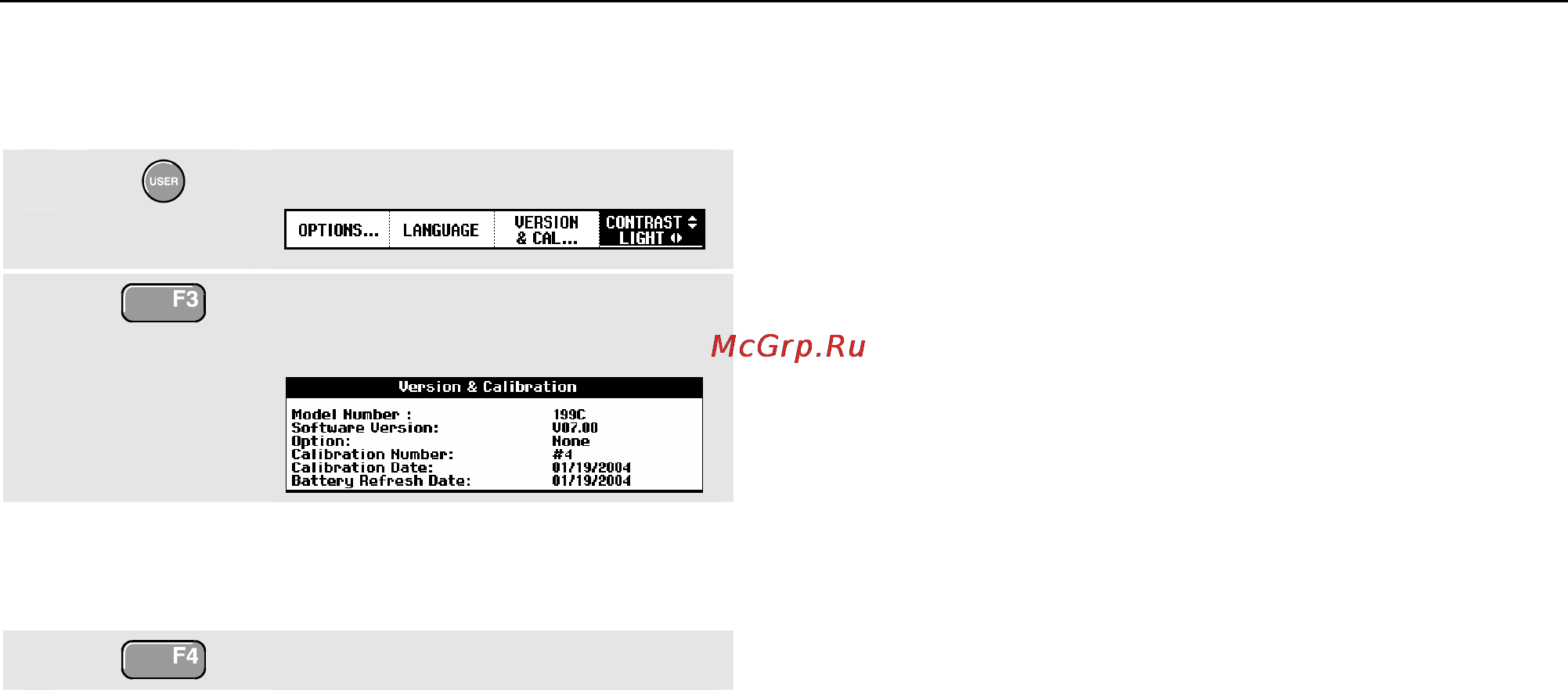

Displaying Calibration Information
You can display version number and calibration date:
1
Display the USER key labels.
2
Open the Version & Calibration
menu.
The screen gives you information about the model number
with software version, the calibration number with latest
calibration date, and the latest battery refresh date.
3
Return.
Recalibration must be carried out by qualified personnel.
Contact your local Fluke representative for recalibration.
Parts and Accessories
The following tables list the user-replaceable parts for the
various test tool models. For additional optional
accessories, see the ScopeMeter Accessories booklet.
To order replacement parts or additional accessories,
contact your nearest service center.
