Fluke 19xC-2x5C
Users Manual
28
Making Multimeter Measurements
The screen displays the numeric readings of the
measurements on the meter input.

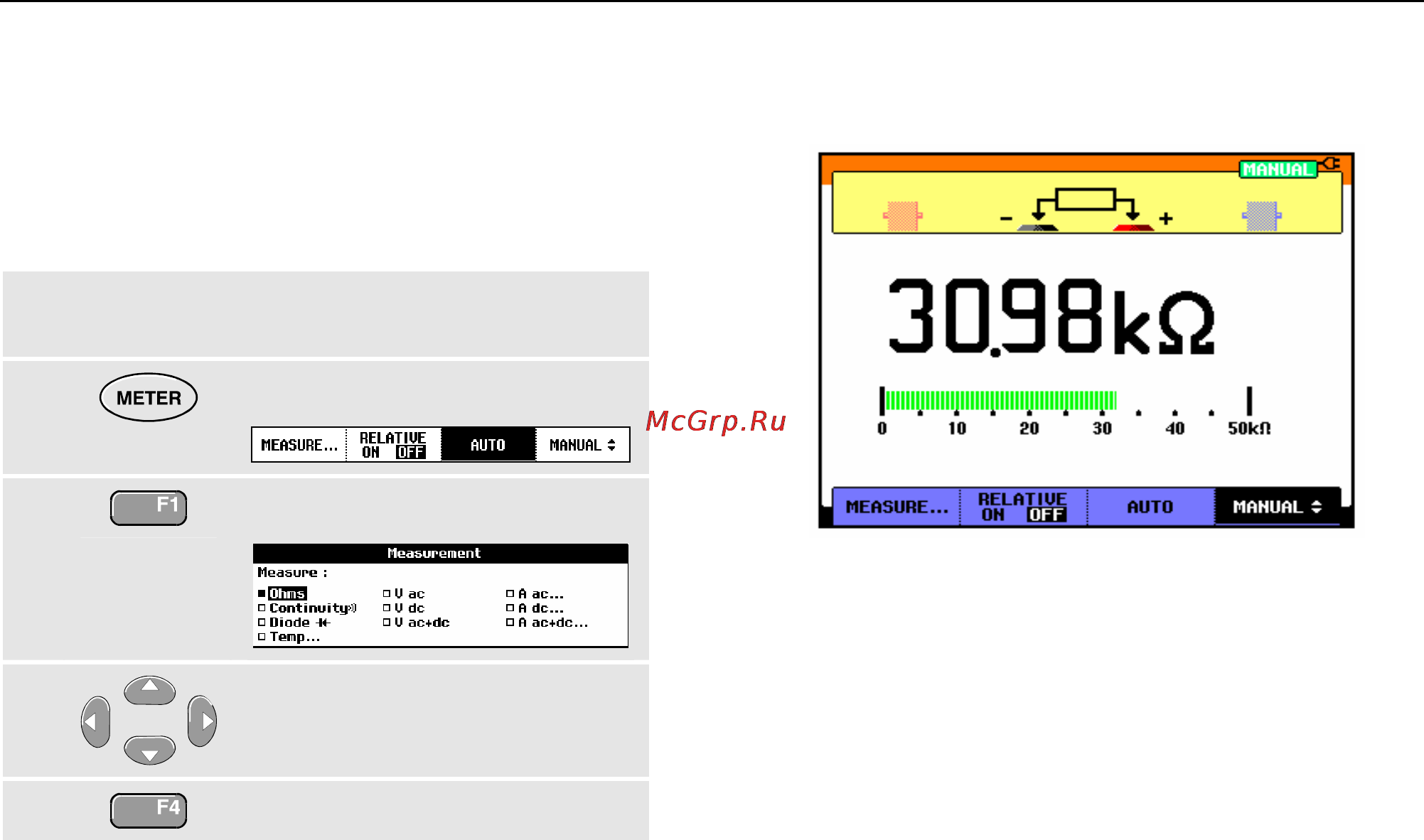

Measuring Resistance Values
To measure a resistance, do the following:
1 Connect the red and black test leads from the
4-mm banana jack inputs to the resistor.
2
Display the METER key labels.
3
Open the Measurement menu.
4
Highlight Ohms.
5
Select Ohms measurement.
The resistor value is displayed in ohms. Observe also that
the bargraph is displayed. (See
Figure 13.)
Figure 13. Resistor Value Readings
