Fluke 19xC-2x5C
Users Manual
86

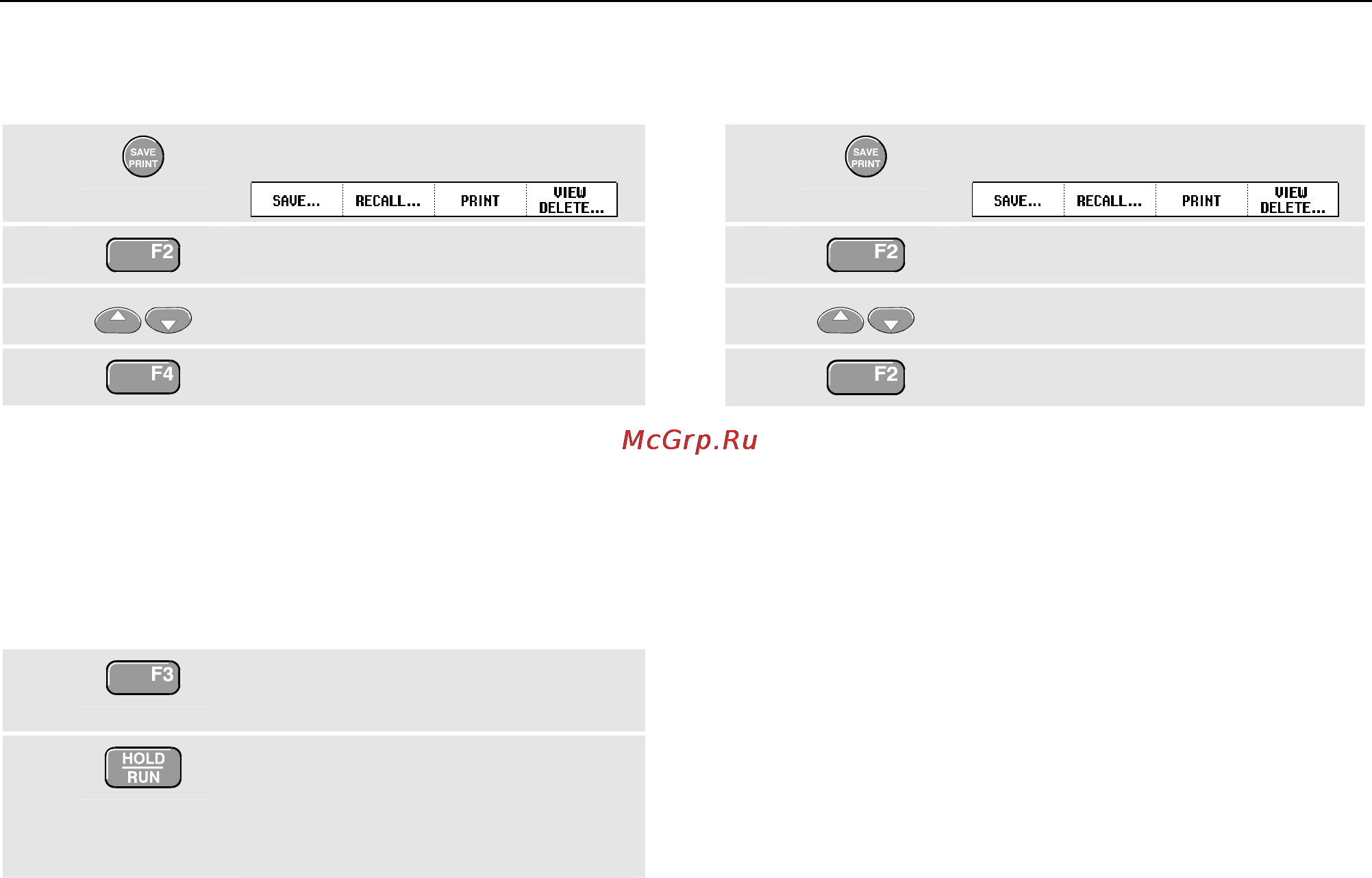

Recalling Screens with Associated Setups
To recall a screen+setup, do the following:
1
Display the SAVE/PRINT key labels.
2
Open the Recall menu.
3
Highlight a screen+setup.
4
Recall the saved screen+setup.
Observe that the recalled waveform is displayed and that
HOLD appears on the screen. From this point you can use
cursors and zoom for analysis or you can print the recalled
screen.
To recall a screen as a reference waveform to compare it
with an actually measured waveform, continue from step 3
as follows:
4
Use RECALL FOR REFERENCE to
recall the saved screen.
5
Resume the measurement. Both,
the reference screen and the
measurement screen will be
displayed.
Recalling a Setup Configuration
To recall a setup configuration, do the following:
1
Display the SAVE/PRINT key labels.
2
Open the Recall menu.
3
Highlight a screen+setup.
4
Recall the saved setup.
Observe that RUN appears at the top right of the screen.
From this point you continue in the new operating
configuration.
