Fluke 19xC-2x5
Users Manual
96

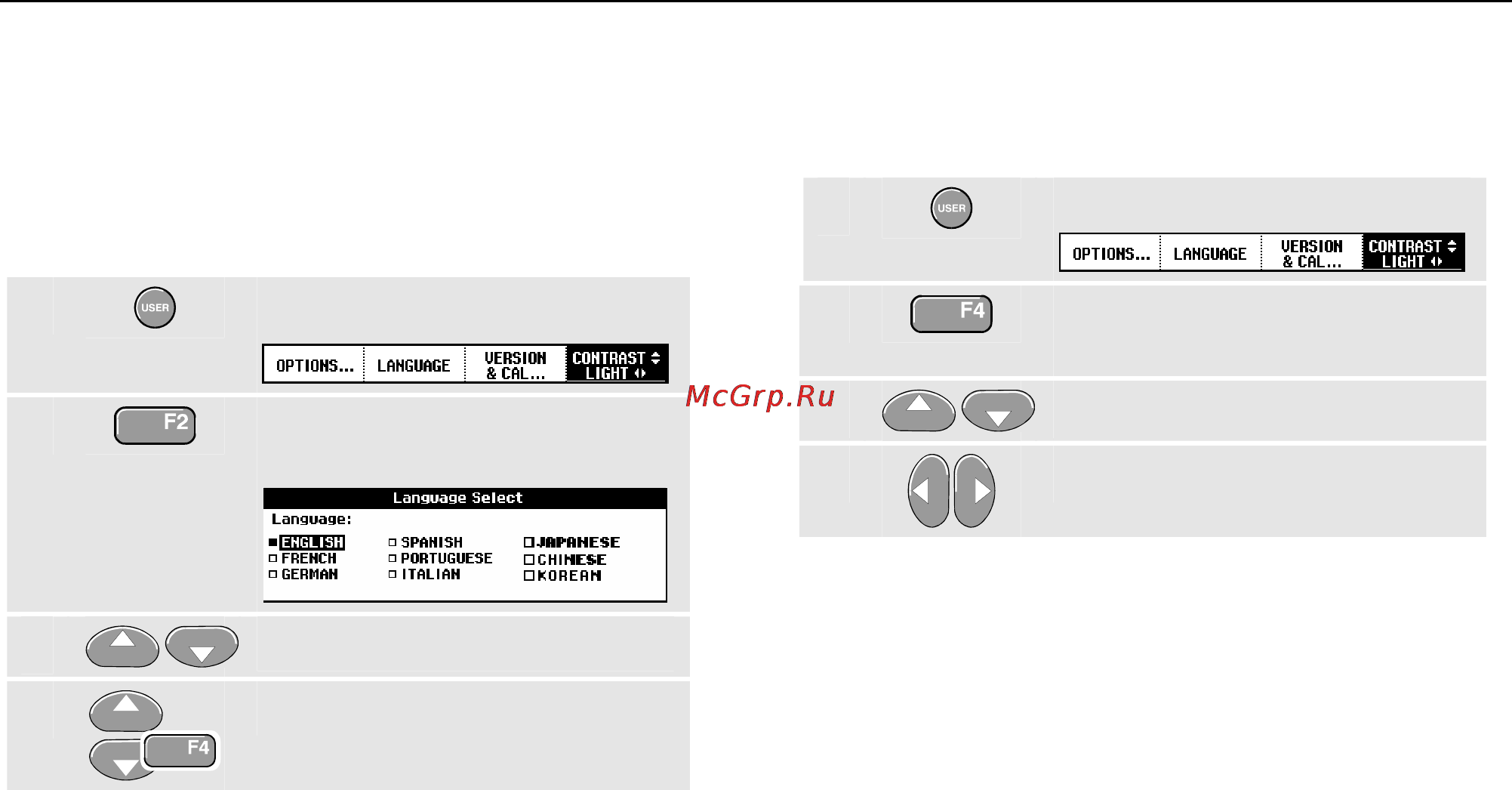

Changing the Information Language
During operation of the test tool, messages may appear at
the bottom of the screen. You can select the language in
which these messages are displayed. In this example you
can select English or French . To change the language
from English to French, do the following:
1
Display the USER key labels.
2
Open the Language Select
menu.
3
Highlight FRENCH.
4
Accept French as the language.
Adjusting the Contrast and Brightness
To adjust the contrast and backlight brightness, do the
following:
1
Display the USER key labels.
2
Enable the arrow keys for manual
contrast and backlight adjustment.
3 Adjust the contrast of the screen.
4
Change the backlight.
Note
The new contrast and brightness are stored until
a new adjustment is made.
To save battery power, the test tool is in economic
brightness mode when operated on the battery. The high
brightness intensity increases when you connect the
power adapter.
Note
Using dimmed light lengthens maximum battery
power operation by about one hour.
