Fluke 190 [89/159] Ethernet twisted pair 10baset 100baset

Using The Bushealth Function

Input Connections and Tested Signals

Ethernet Twisted Pair/10BaseT/100BaseT

Default probe setting 10:1. Use the Fluke 10:1 probe.

1 Connect the red probe to test tool input A

2 Connect the probe ground lead to the bus TD+

(RD+)

3 Connect the probe tip to the bus TD- (RD-)

TD+ (RD+)

TD- (RD-)

RJ- 45

1 (3)

2 (6)

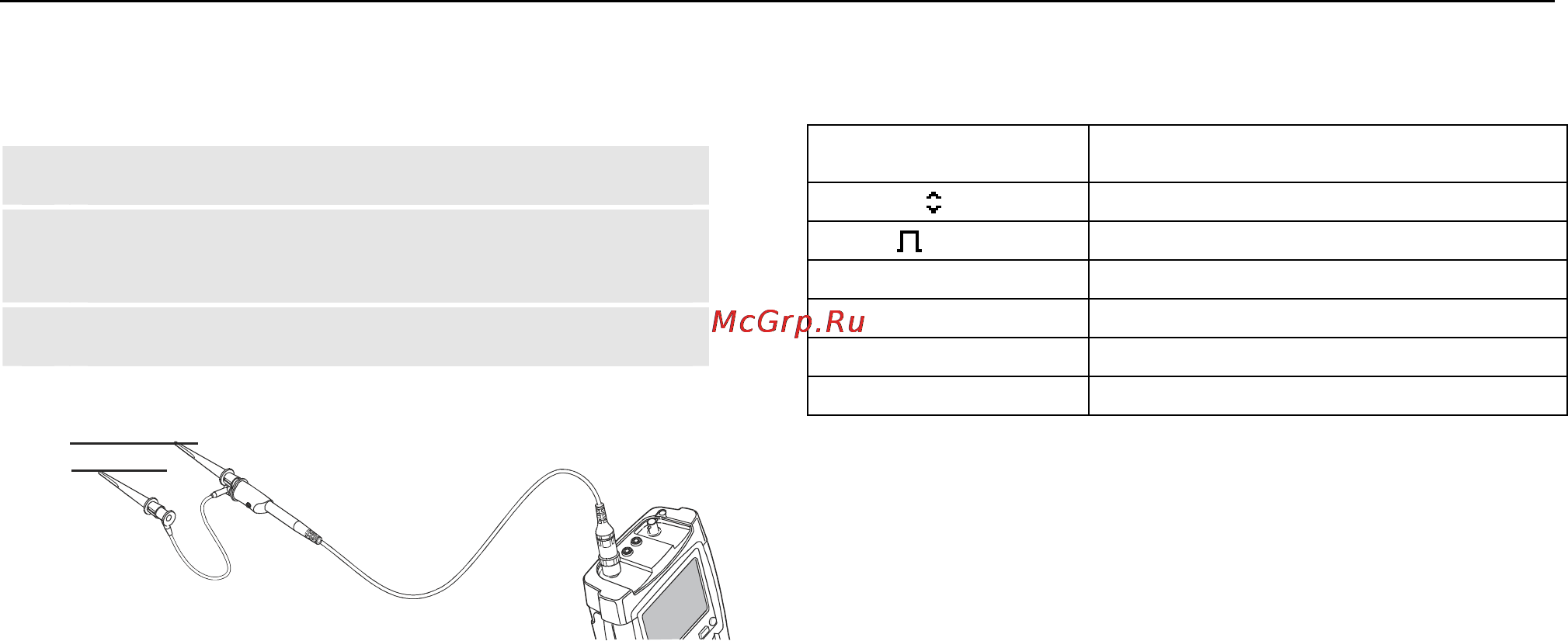

Figure 45. Ethernet Twisted Pair Measurement

Connections

Note

Normally the Ethernet bus has continuous data

traffic. Incidentally the bus may have no

continuous data traffic. See Data Traffic on page

70.

Table 11. Ethernet Twisted Pair Tested Signal

Properties

Signal Description

V-Level Peak-Peak voltage

Data Bit width

Rise Rise time as % of bit width

Fall Fall time as % of bit width

Jitter Jitter distortion

Signal Dist. Signal distortion
