Fluke 190 [24/159] Freezing the screen
![Fluke 190 [24/159] Freezing the screen](/views2/1005075/page24/bg18.png)
Fluke 19xC-2x5C
Users Manual
14

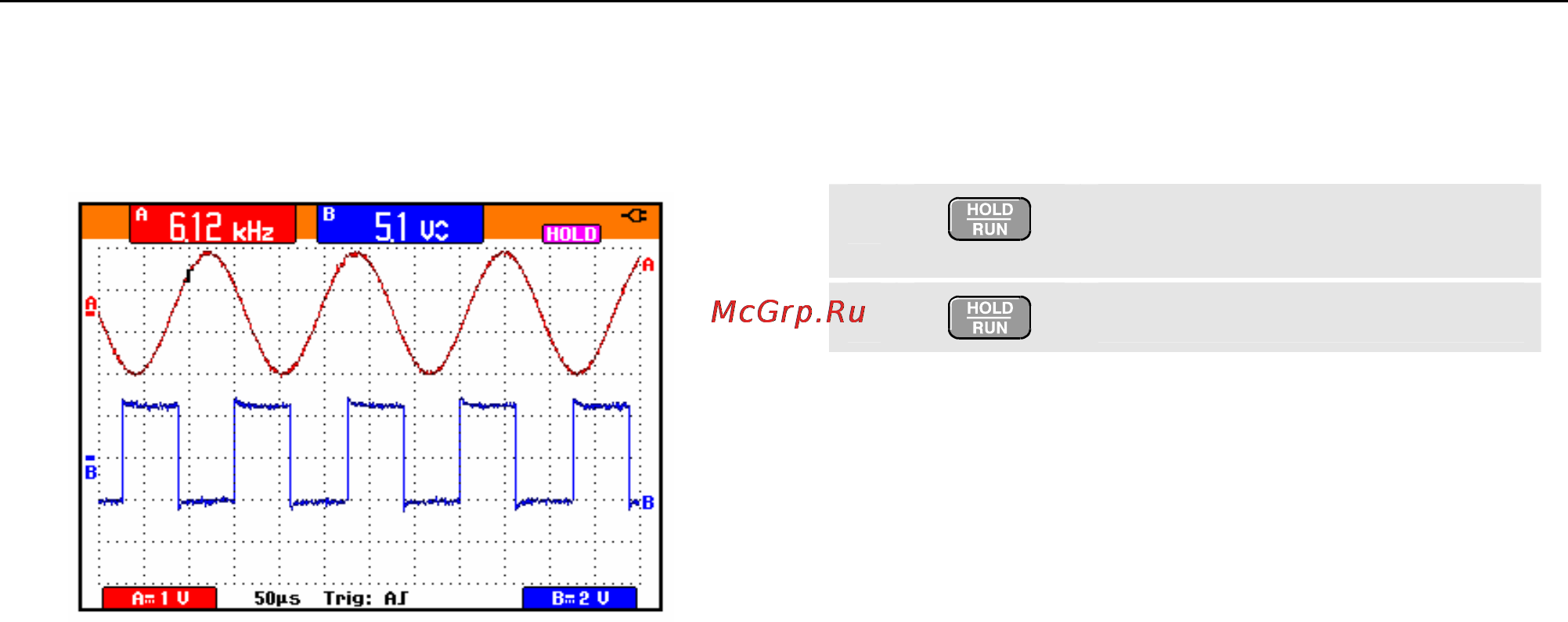

Figure 8 shows an example of the screen. Note that the
Peak-Peak reading for input B appears next to the input A
frequency reading at the top of the screen.
Figure 8. Hz and V peak-peak as Scope Readings
.
Freezing the Screen
You can freeze the screen (all readings and waveforms) at
any time.
1
Freeze the screen. HOLD appears
at the right of the reading area.
2
Resume your measurement.
