Fluke 190 [12/159] Figure 1 scopemeter test tool kit

Fluke 19xC-2x5C

Users Manual

Unpacking the Test Tool Kit

The following items are included in your test tool kit:

Note

When new, the rechargeable NiMH battery is not

fully charged. See Chapter 9.

(2x)

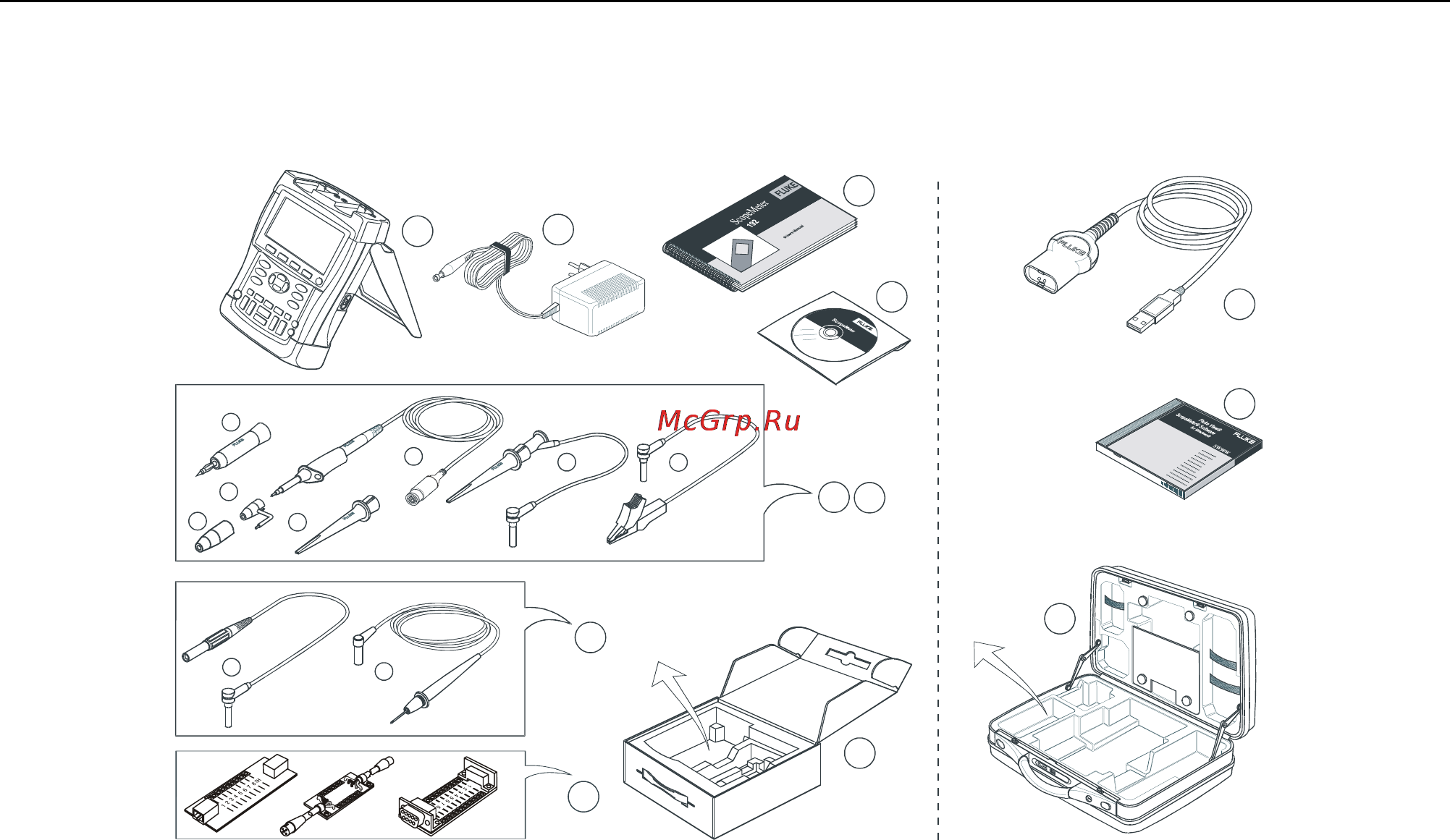

Figure 1. ScopeMeter Test Tool Kit
