Fluke 190 [50/159] Analyzing a trendplot or scope record

Fluke 19xC-2x5C

Users Manual

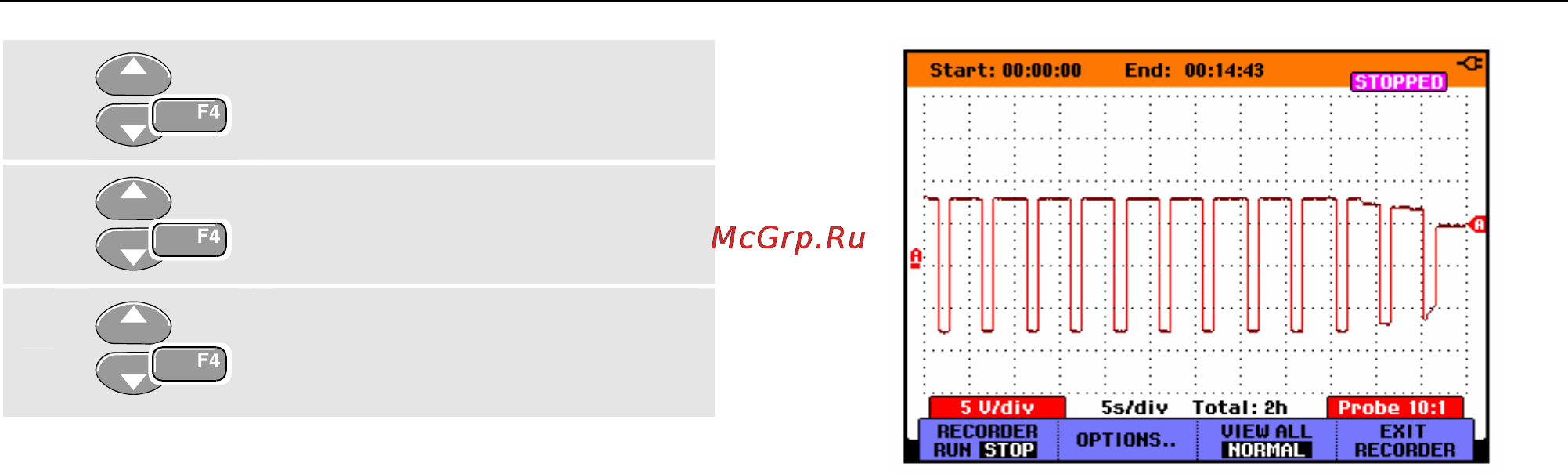

Select one of the Conditions:

and jump to Slope:.

Select the desired trigger slope,

and jump to Level:

Select the 0.12V or 1.2 V trigger

level and accept all recorder

options.

During recording samples are continuously saved in deep

memory. The last twelve recorded divisions are displayed

on the screen. Use View All to display the full memory

contents.

Note

To learn more about the Single Shot trigger

function, see Chapter 5 “Triggering on

Waveforms”.

Figure 21. Triggered Single Sweep Recording

Analyzing a TrendPlot or Scope Record

From a Scope TrendPlot or Scope Record you can use the

analysis functions CURSORS and ZOOM to perform

detailed waveform analysis. These functions are described

in Chapter 4: “Using Replay, Zoom and Cursors”.
