High Performance Vector Control/Torque Control Inverter User Manual
116
Chapter 6 Parameter Description
When the motor speed is greater than ASR switching frequency Pd.05, Pd.01 and Pd.02 will act to make
the system obtain reasonable dynamic response when no shock occurs. If the motor speed is smaller
than ASR switching frequency Pd.05, Pd.03 and Pd.04 will act. To obtain reasonable dynamic response
when operating slowly, increase proportional gain Pd.03 and reduce integral time Pd.04 properly.
Upon torque control, the speed cannot be controlled. When the set torque is larger than the load torque,
the motor speed will keep rising to the speed limiting value. This function code sets the forward/reverse
maximum speed limiting value.
Note:
The analog channel input may be used to realize the maximum speed limiting upon torque
control. Refer to the description of analog channel function selection P6.21.
When analog channel input is used to realize speed limiting, terminals can be used to
forcefully use Pd.06 and Pd.07 as the speed limiting value.
Pd.08 and Pd.09 are used to limit the maximum output torque of the inverter. The limit value is proportion
of the rated output torque of motor. When large braking torque is required, please adopt additionally the
energy braking method.

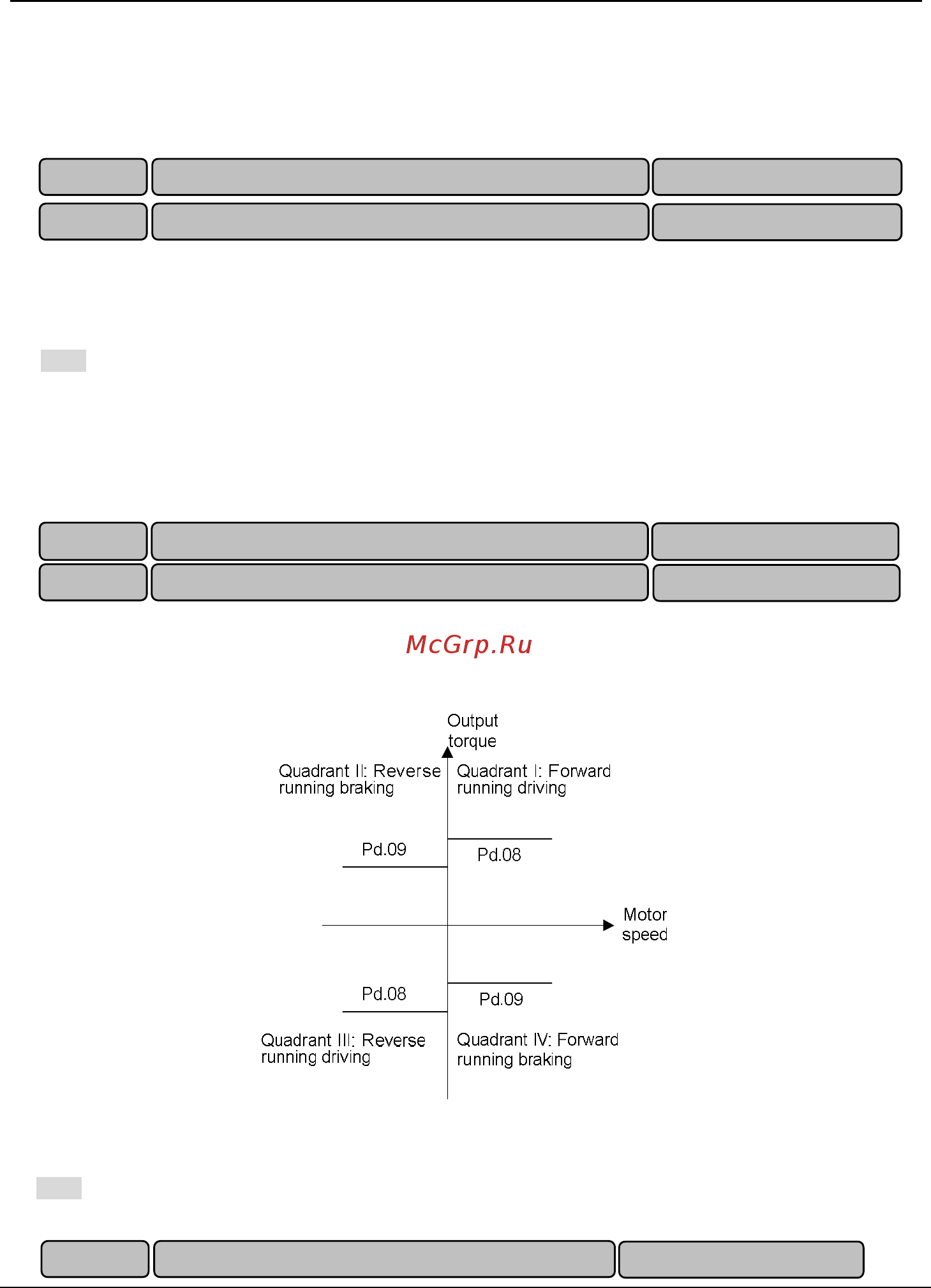

Fig. 6-38 Torque limit
Note: When setting P9.00 to 1, i.e. operating with variable torque load, the setting range of Pd.08 and
Pd.09 change to 0.0~150.0%. The leave-factory value is 135.0%
Pd.06 Maximum speed limit for forward running when torque control
0.00~300.00Hz(50.00Hz)
Pd.07 Maximum speed limit for reverse running when torque control
0.00~300.00Hz(50.00Hz)
Pd.08 Drive torque limit 0.0~250.0 %(180.0%)
Pd.09 Braking torque limit
0.0~250.0 %(180.0%)
Pd.10 Reserved
0~65535(4)
