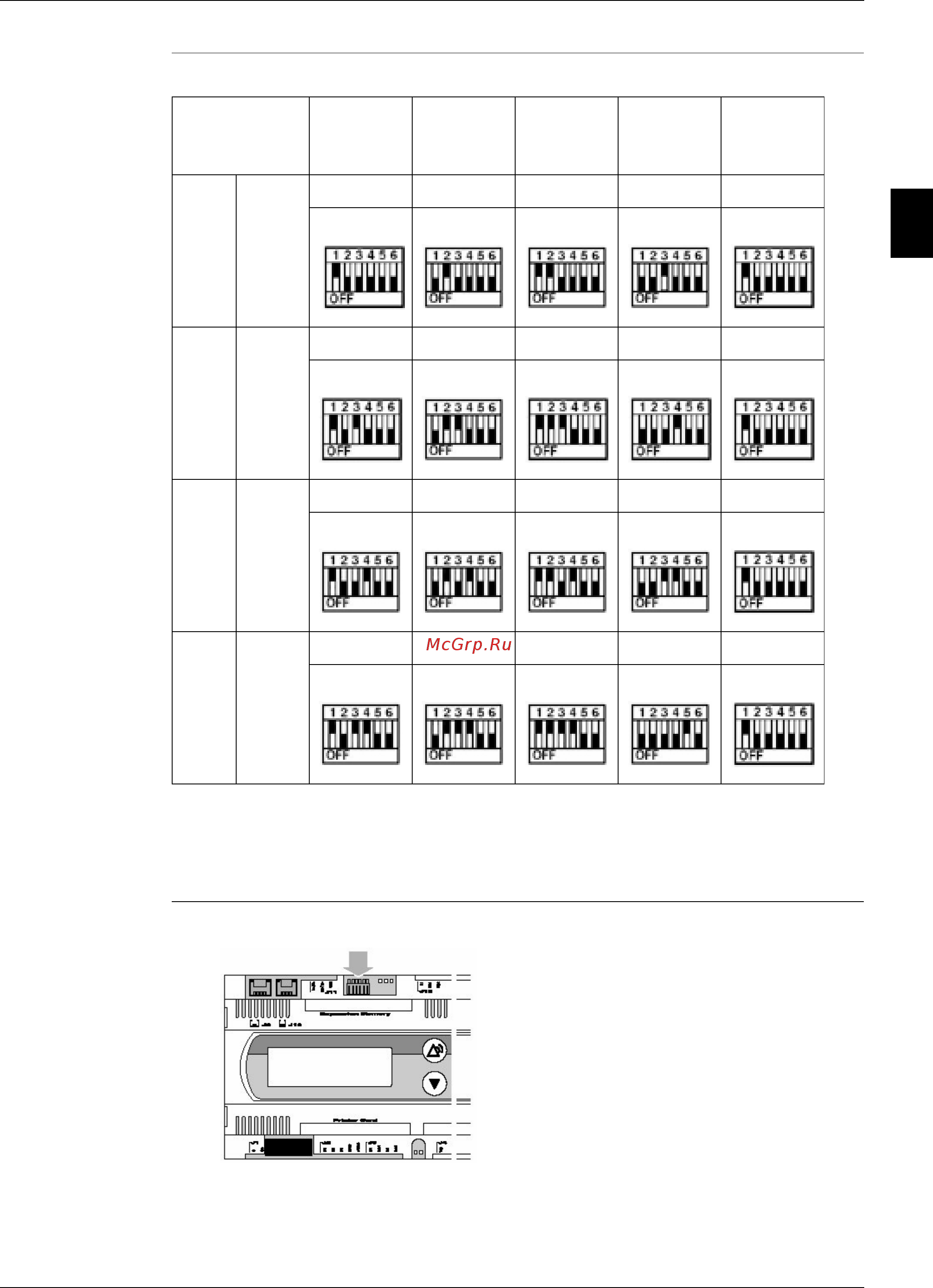

ESIE05-07 The Functional Controller for DICN
Part 2 – Functional Description 2–77
3
2
4
5
1
Overview of
addresses in DICN
setup
Remark:
P PCOE expansion board address is always 1.
P PCOE is only used on all double circuits.
Place of
Dipswitches
Place of dipswitches on the pCO
2
controller:
PCB
(pCO
2
)
User
terminal
(option)
EEV 1
(If present)
EEV 1
(If present)
PCOE
(If present)
Unit 1 Master 1 2 3 4 1
Unit 2Slave 156781
Unit 3 Slave 2 9 10 11 12 1
Unit 4Slave 3131415161
