Olympus AxSEAM [100/116] Front assembly part 2

10-013816-01EN, Rev. 2, June 2020

Chapter 692

6.11 Front Assembly Part 2

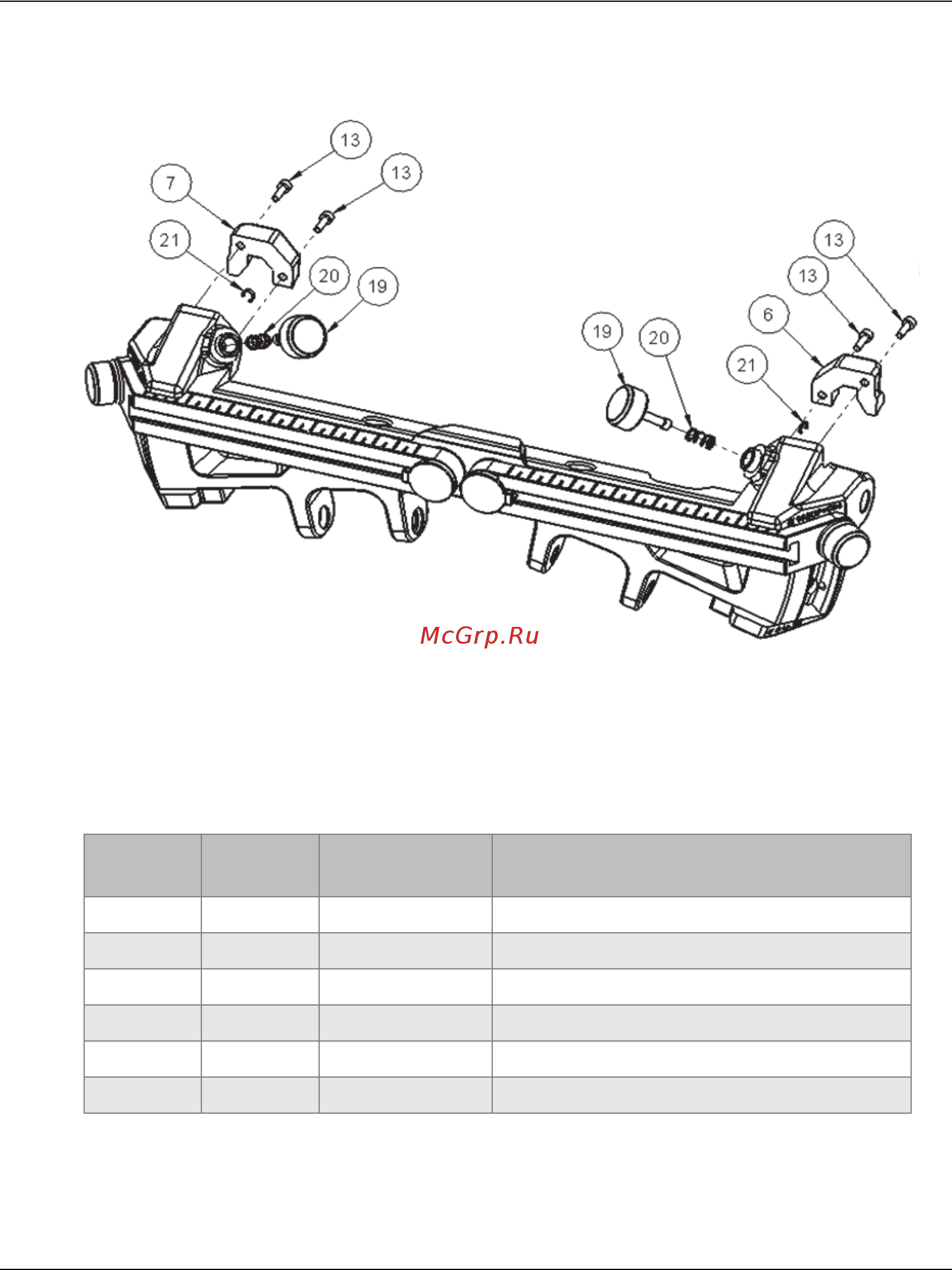

Figure 6-11 Front assembly exploded view — part 2

Table 13 Front assembly part 2 — spare parts

Drawing

number

Quantity

a. This number represents the typical quantity initially included with your scanner

package.

Part number Description

6 1 Q8301760 Frame front circumferential pivot cap_r

7 1 Q8301761 Frame front circumferential pivot cap_l

13 4 U8908544 Screw M3 × 10 mm stain hex socket cap

19 2 Q8301762 Screw thumb circumferential pivot

20 2 Q8301763 Spring comp. OD 0.25 lenght 0.47

21 2 Q8301764 Ring retaining ext. low clearance 4 mm

①

③

④

⑤

②

⑥
