Olympus AxSEAM [52/116] To use shims with 40 mm wide wedges

10-013816-01EN, Rev. 2, June 2020

Chapter 244

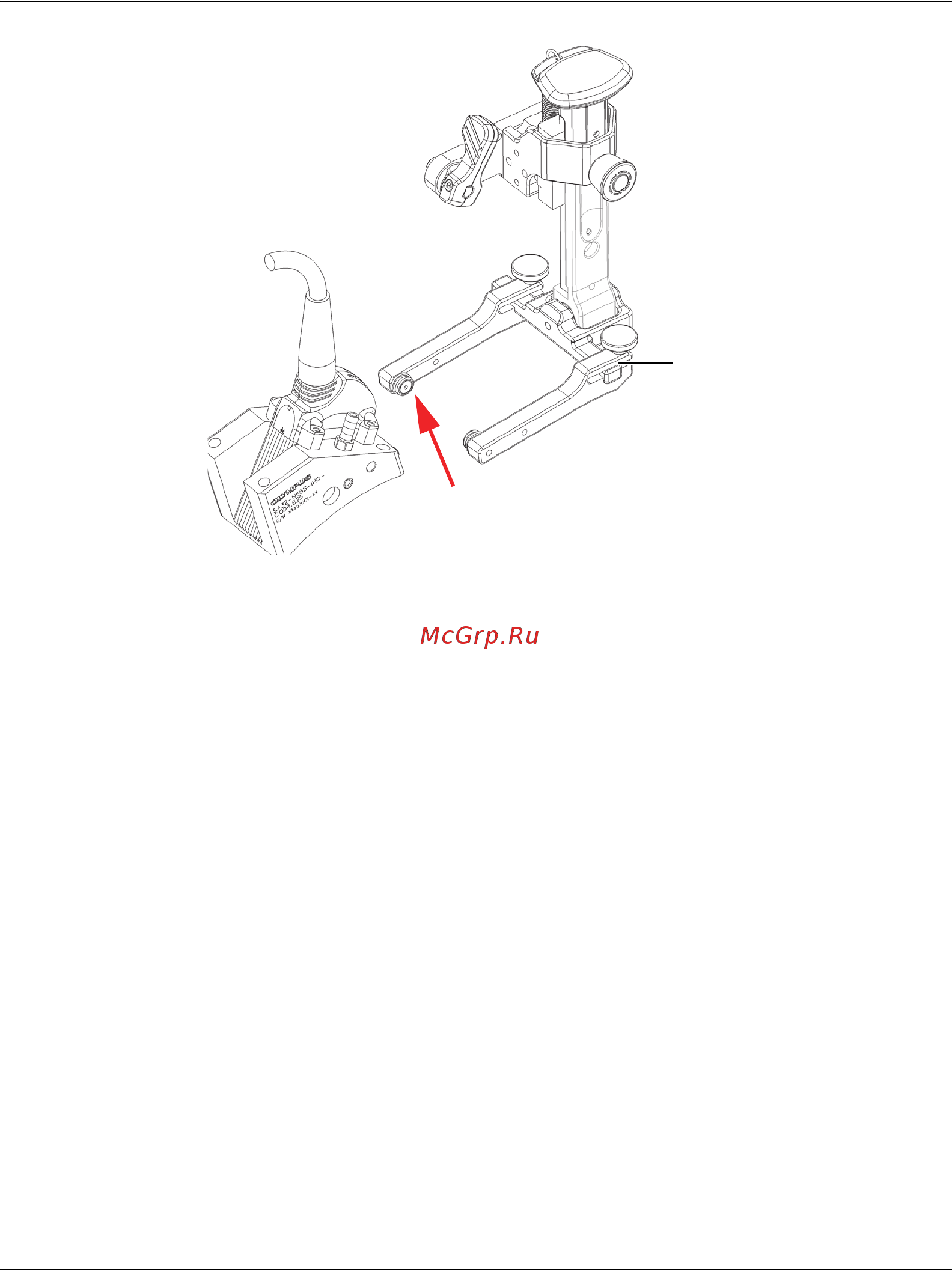

Figure 2-14 Aligning the wedge pivot hole with the yoke arm button

4. Slide the other yoke arm inward on the yoke pivoting beam making sure that the

buttons are well inserted in the wedge holes and that the arms are holding the

wedge tight.

5. Tighten the yoke arm thumb screw to secure the yoke arm into place. Make sure

that the probe is centered with the yoke pivoting beam.

2.6 Using Shims with 40 mm Wide Wedges

For 40 mm wide wedges, shims are available to ensure that both yoke arms are

properly aligned and that the wedge is centered.

To use shims with 40 mm wide wedges

1. Loosen the yoke arm thumb screws, and remove both yoke arms from the yoke

pivoting beam.

2. Insert one shim on each side of the yoke pivoting beam (Figure 2-15 on page 45).

Slid out

yoke arm
