Olympus AxSEAM [31/116] Brake system

10-013816-01EN, Rev. 2, June 2020

Overview 23

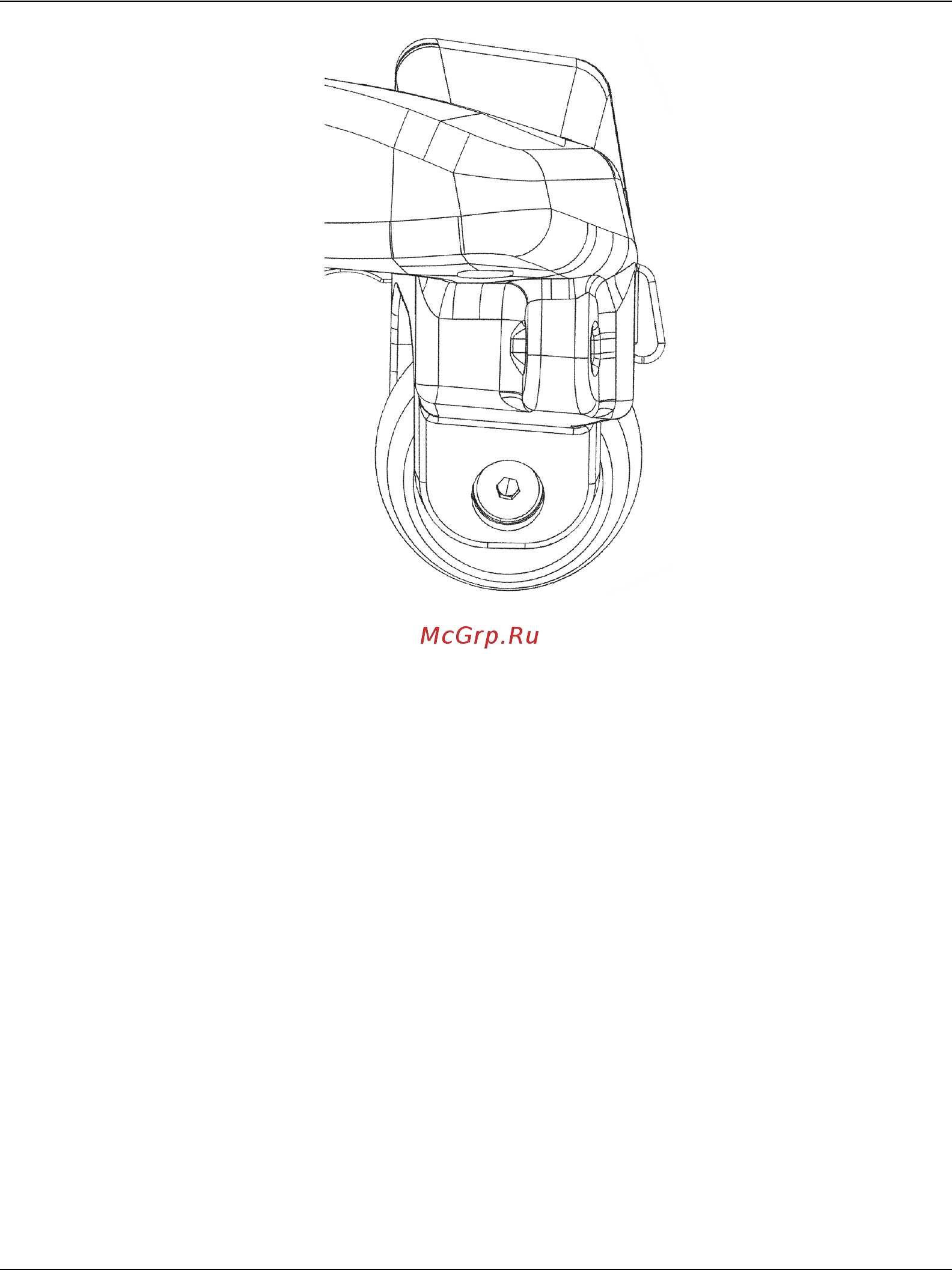

Figure 1-3 Magnetic wheel

1.2.5 Brake System

The brake system blocks the wheels to prevent the scanner from moving.

1.2.6 Encoder

A wheel encoder measures the scanner displacement to determine the position on the

scan axis (Figure 1-4 on page 24).

The encoder is spring-loaded to ensure that it remains in contact with the inspection

surface with adequate pressure and travel for different pipe diameters. The encoder is

waterproof and comes with a cable that connects to the ScanDeck™ module.

Although the encoder cannot be connected directly to an instrument but rather

through the ScanDeck™ module, its technology is compatible with OmniScan and

FOCUS instruments.
