Olympus AxSEAM [56/116] Flipping a probe holder

10-013816-01EN, Rev. 2, June 2020

Chapter 248

6. Install the new probe onto the wedge.

7. Using the cross-head screwdriver, tighten the screws that hold the probe on the

wedge in a cross pattern.

Not tightening the screws using a cross pattern results in the probe being positioned

with a slight angle on the wedge and affects the acoustic performance.

2.8 Flipping a Probe Holder

To flip a probe holder from left to right or vice versa

1. Remove the two screws on the SLA bracket with a 2.5 mm hex key (Figure 2-19 on

page 48).

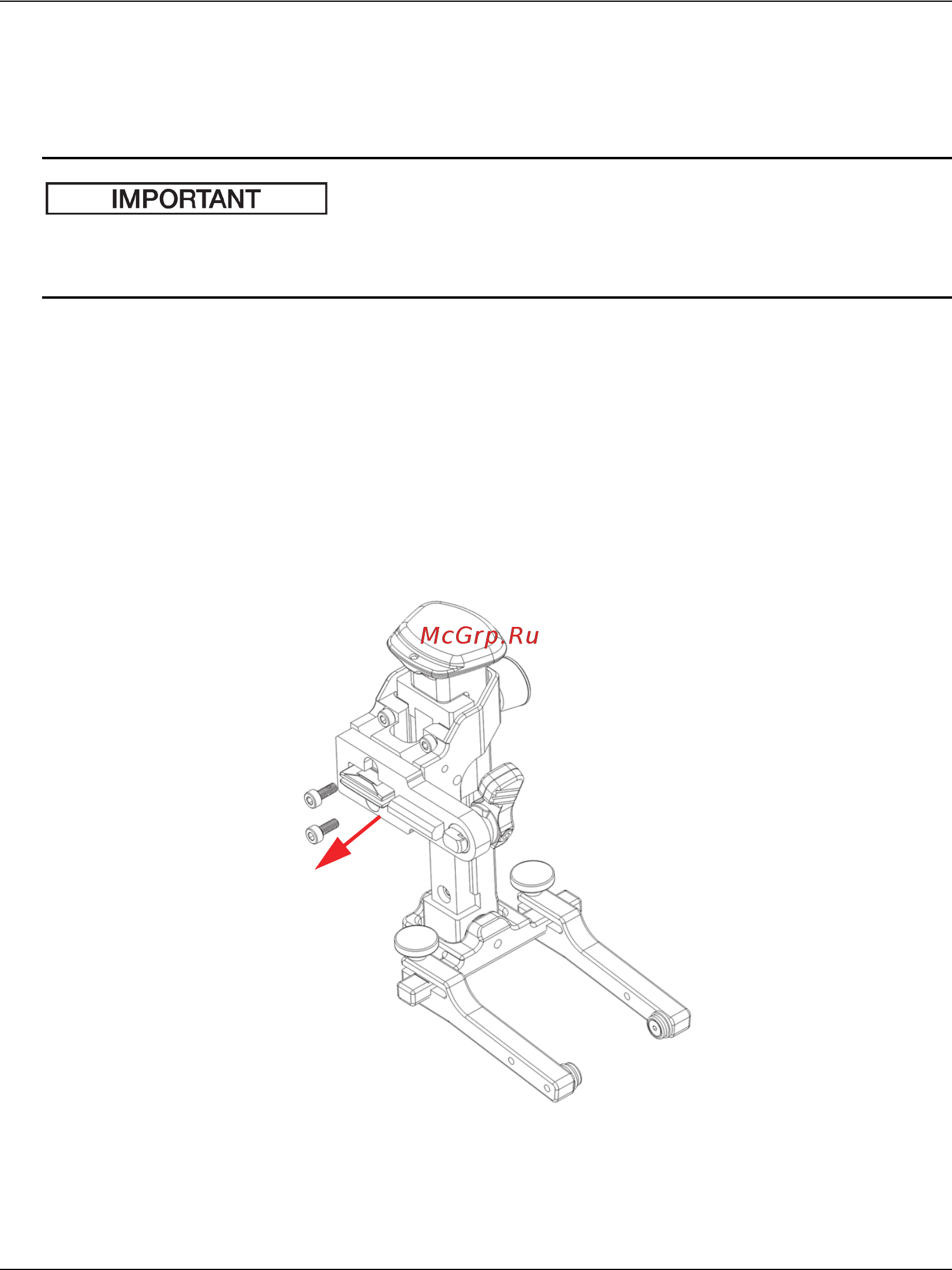

Figure 2-19 Removal of two screws

IMPORTANT
