10-013816-01EN, Rev. 2, June 2020

Scanner Assembly and Setup 49

2. Rotate the SLA bracket 180 degrees (Figure 2-20 on page 49).

3. Put the two screws back into place (Figure 2-20 on page 49).

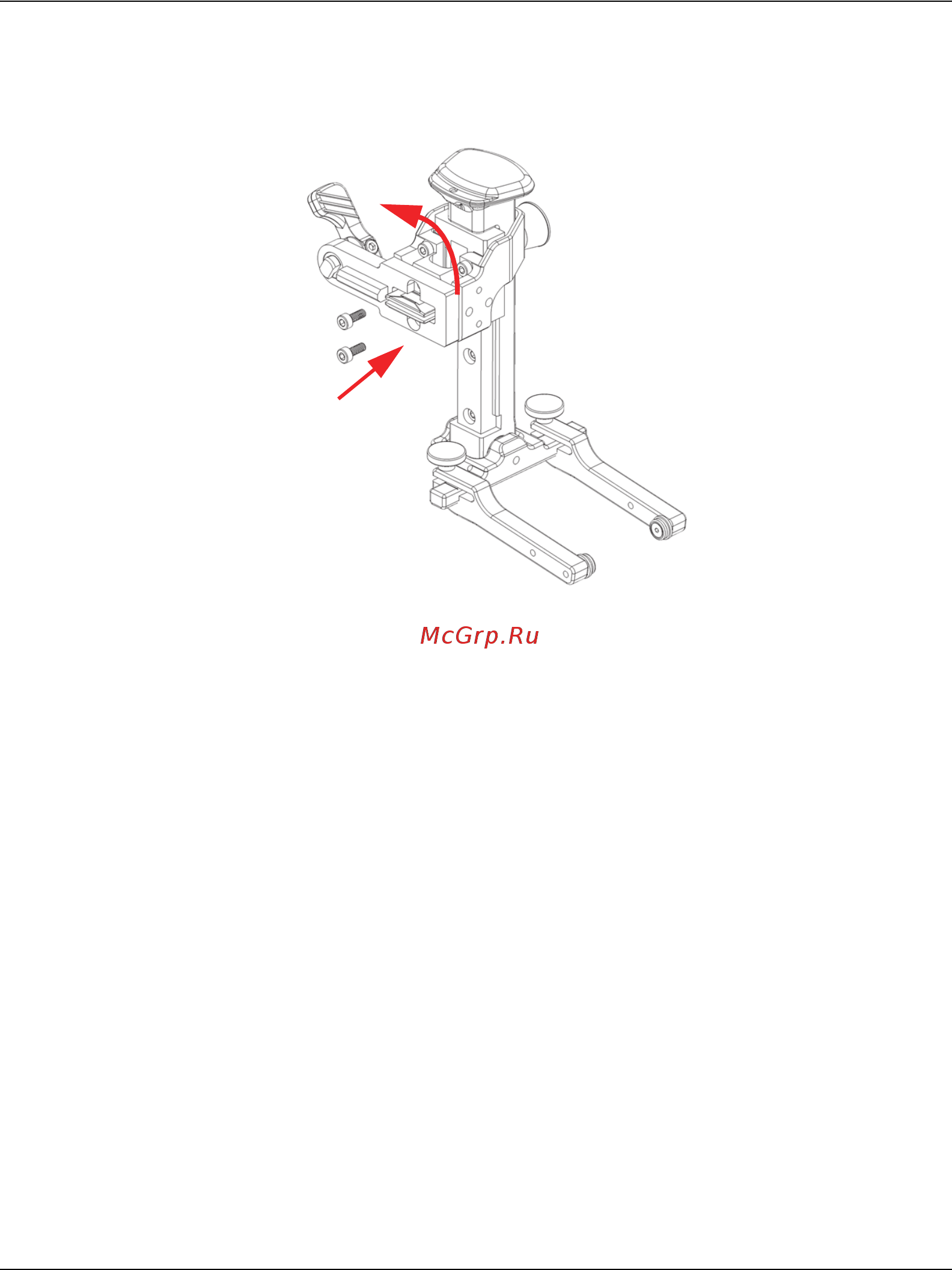

Figure 2-20 Flipping of the SLA bracket

4. Remove the screw of the yoke pivoting beam with a 2.5 mm hex key (Figure 2-21

on page 50).
