10-013816-01EN, Rev. 2, June 2020
Chapter 360

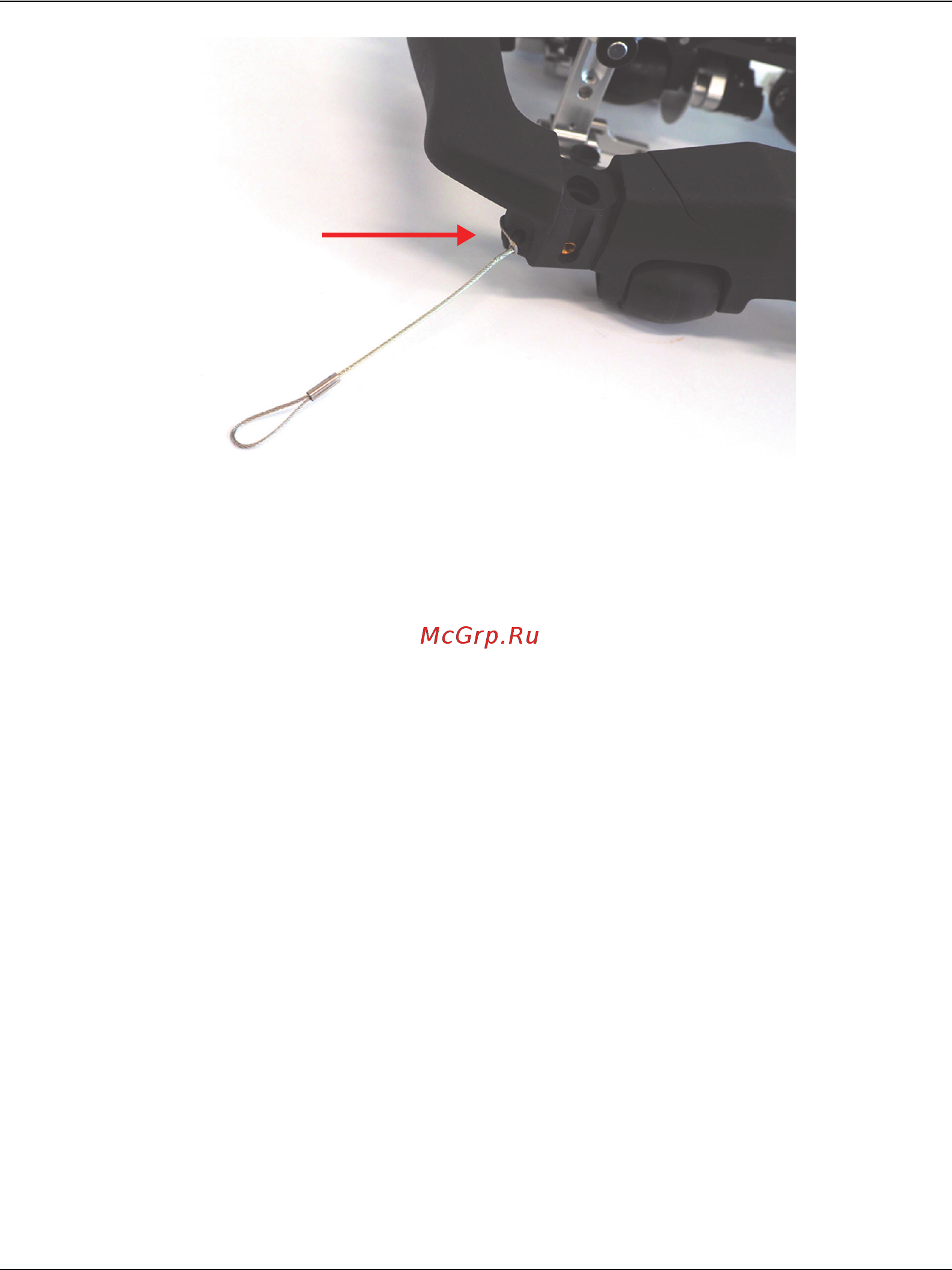

Figure 3-1 Lanyard attachment point
3.2 Connecting to the Water Pump
To connect to the water pump
Connect the water tubing to the manual or electrical water pump.
3.3 Installing the Scanner on the Pipe
To install the scanner on the pipe
1. Configure the scanner frame for the longitudinal or circumferential position
depending on the inspection you need to perform, using the appropriate frame
adjustment knobs. For more details, see “Changing the Probe Holder Mounting
Rail Angle for Longitudinal Scanning” on page 33 and “Changing the Frame
Angle for Circumferential Scanning” on page 35.
a) To change the frame configuration, unscrew the two knobs until they pop out
(the knobs stay attached to the scanner).
b) Choose the frame position according to the part configuration. For more
details, see “Changing the Probe Holder Mounting Rail Angle for
