Инструкция Страница: 98

Olympus AxSEAM [98/116] Front assembly part 1

10-013816-01EN, Rev. 2, June 2020

Chapter 690

6.10 Front Assembly Part 1

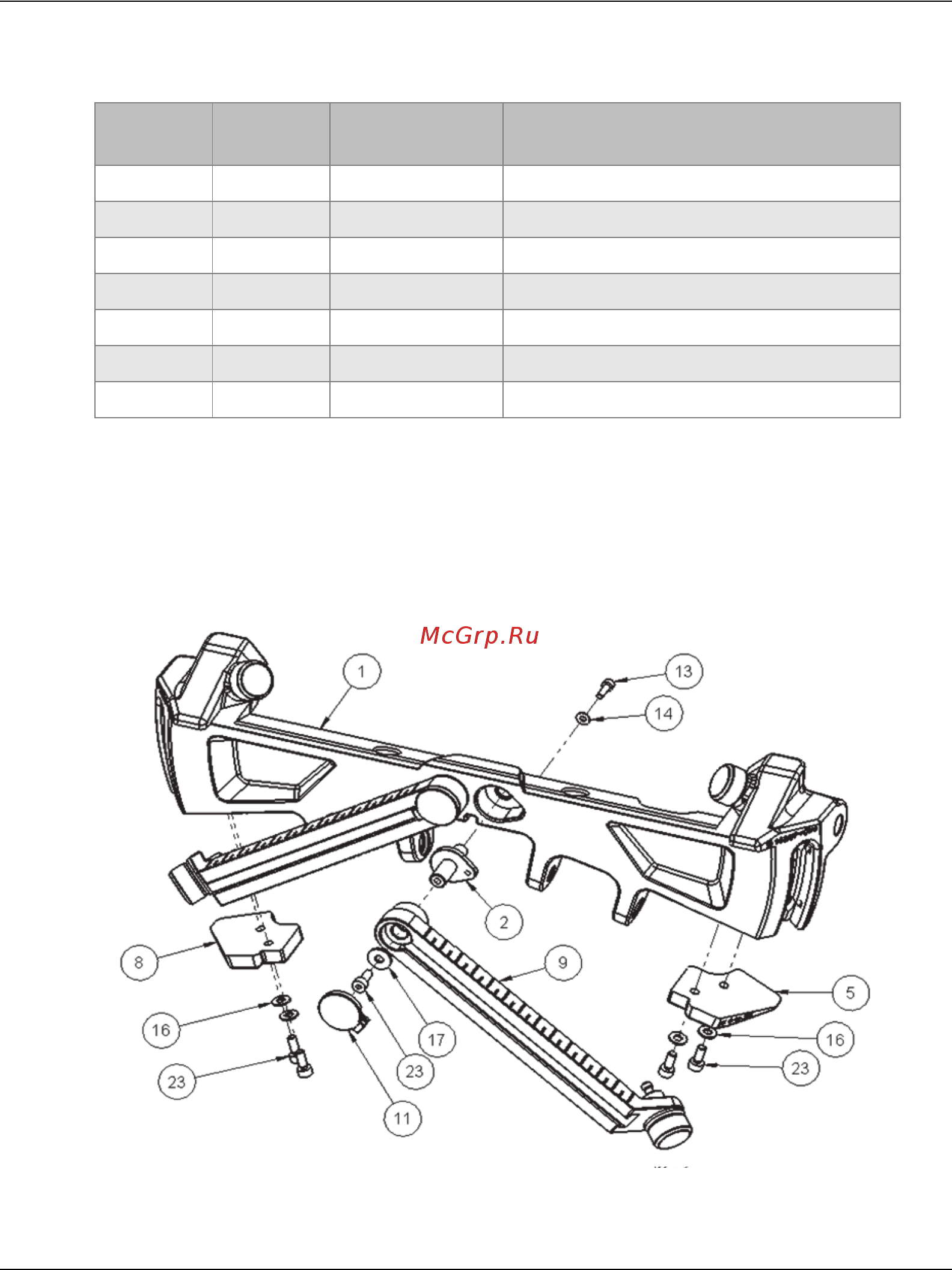

Figure 6-10 Front assembly exploded view — part 1

Table 11 Rear assembly part 2 — spare parts

Drawing

number

Quantity

a. This number represents the typical quantity initially included with your scanner

package.

Part number Description

1 1 Q8301740 Frame rear

12 6 Q8301748 Screw M4 × 12 mm stain hex socket cap

16 1 Q8301749 Bracket pivot circumferential left

17 1 Q8301750 Bracket pivot circumferential right

18 1 Q8301751 Pivot circumferential left 0–25 deg

19 1 Q8301752 Pivot circumferential right 0–25 deg

20 2 Q8301753 Screw M3 × 12 mm hex flat stain

⑥

⑦

⑧

⑨

⑩

①

②

④

⑤

③
