Olympus AxSEAM [103/116] Figure 7 1 scanner dimensions

10-013816-01EN, Rev. 2, June 2020

Specifications 95

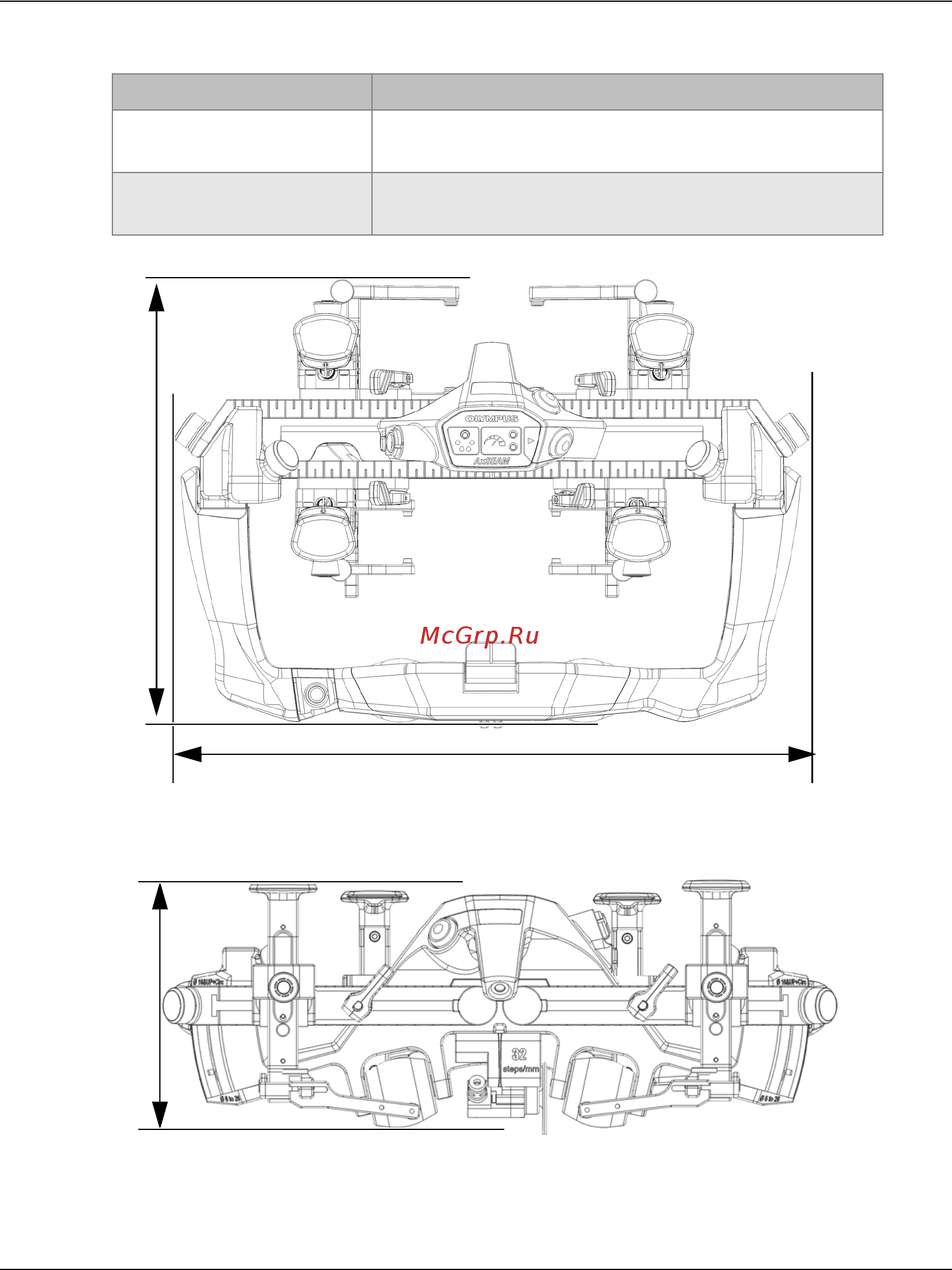

Figure 7-1 Scanner dimensions

Thermal shock Standard MIL-STD 810H Method 503.7 Procedure I-

C, Figure 503.7-3

Humidity storage Standard MIL-STD 810H Method 507.6 Procedure

II, Figure 507.6-7

Table 15 Operating environment specifications (continued)

Parameter Value

377 mm (14.8 in.)

230 mm (9 in.)

128.3 mm (5 in.)
