Olympus AxSEAM [43/116] To change the frame angle for circumferential scanning

10-013816-01EN, Rev. 2, June 2020

Scanner Assembly and Setup 35

Verify that the probe cables are not in contact with the probe holders. In some cases,

on pipe diameters that are between 406.4 mm (16 in.) and 660.4 mm (26 in.), the frame

pivots may need to be placed at their lowest positions to prevent the cables from

coming into contact with the probe holders (Figure 2-12 on page 42).

3. Turn the knobs clockwise to secure the probe holder mounting rails into position.

2.2 Changing the Frame Angle for Circumferential Scanning

For the circumferential inspection of pipes with diameters smaller than 16 in. OD, the

frame must be pivoted using the pivoting system.

To change the frame angle for circumferential scanning

1. Turn counterclockwise the two frame pivoting system knobs (Figure 2-3 on

page 35).

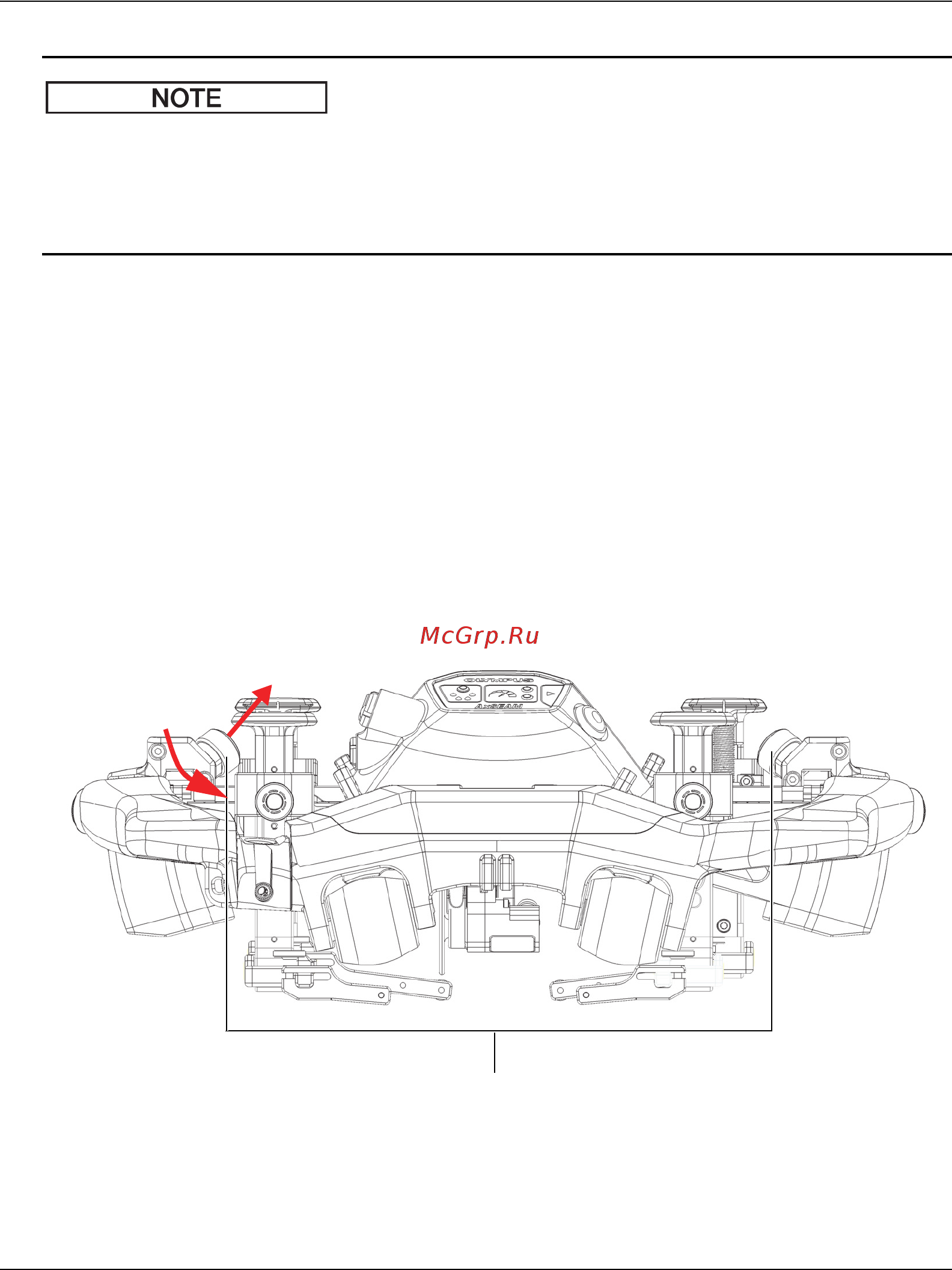

Figure 2-3 Circumferential scanning adjustment knobs

NOTE

Frame pivoting system knobs
