Olympus AxSEAM [36/116] A quick action lever is used to loosen the probe holder so it can slide on the probe holder mounting rail or be removed from the frame altogether

10-013816-01EN, Rev. 2, June 2020

Chapter 128

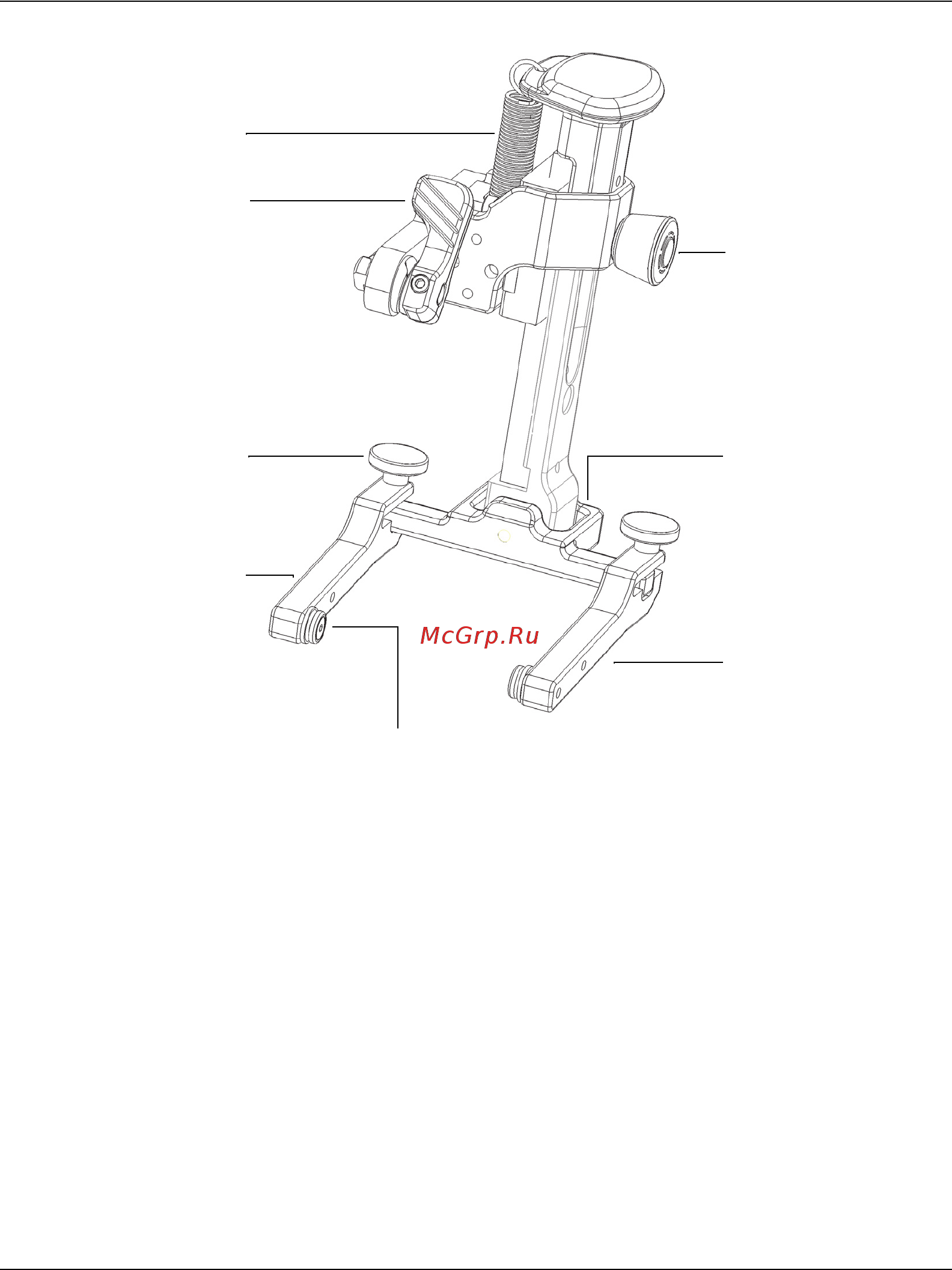

Figure 1-7 Probe holder components

Positioning lever

A quick action lever is used to loosen the probe holder so it can slide on the probe

holder mounting rail or be removed from the frame altogether.

Springs

Three different sets of springs are provided with different spring rates, and they

can quickly be changed without tools to adjust the pressure between the wedge

and the part for different configurations.

Yoke arms

Position lever

Latch knob

Wedge pivot

button positioning

holes

Yoke arms

thumb screws

Spring

Wedge pivot button

Yoke pivoting

beam
