10-013816-01EN, Rev. 2, June 2020
Overview 29
Latch knob
The latch system is used to hold the probe in a raised position to ease any
manipulation of the wedge.
Yoke arm thumb screw
Used to quickly loosen a yoke arm to remove or install a probe. Can also be used
to set the yoke for different wedge widths.
Wedge pivot buttons
There are two models of wedge pivot buttons. A 8 mm diameter set for phased
array probes and a 5 mm diameter set for TOFD or UT transducers as well as
DLA probes.
Wedge button positioning holes
If there is enough room, the wedge pivot button can be positioned closer to the
yoke pivoting beam for more stability of the probe during the inspection.
Yoke arms
Two different yoke arm lengths are provided with the AxSEAM scanner. A longer
one for phased array probes and a shorter one for TOFD or UT transducers
(Figure 1-8 on page 29, Figure 1-9 on page 30, Figure 1-10 on page 30, and
Figure 1-11 on page 31). For yoke dimensions, see “Specifications” on page 93.

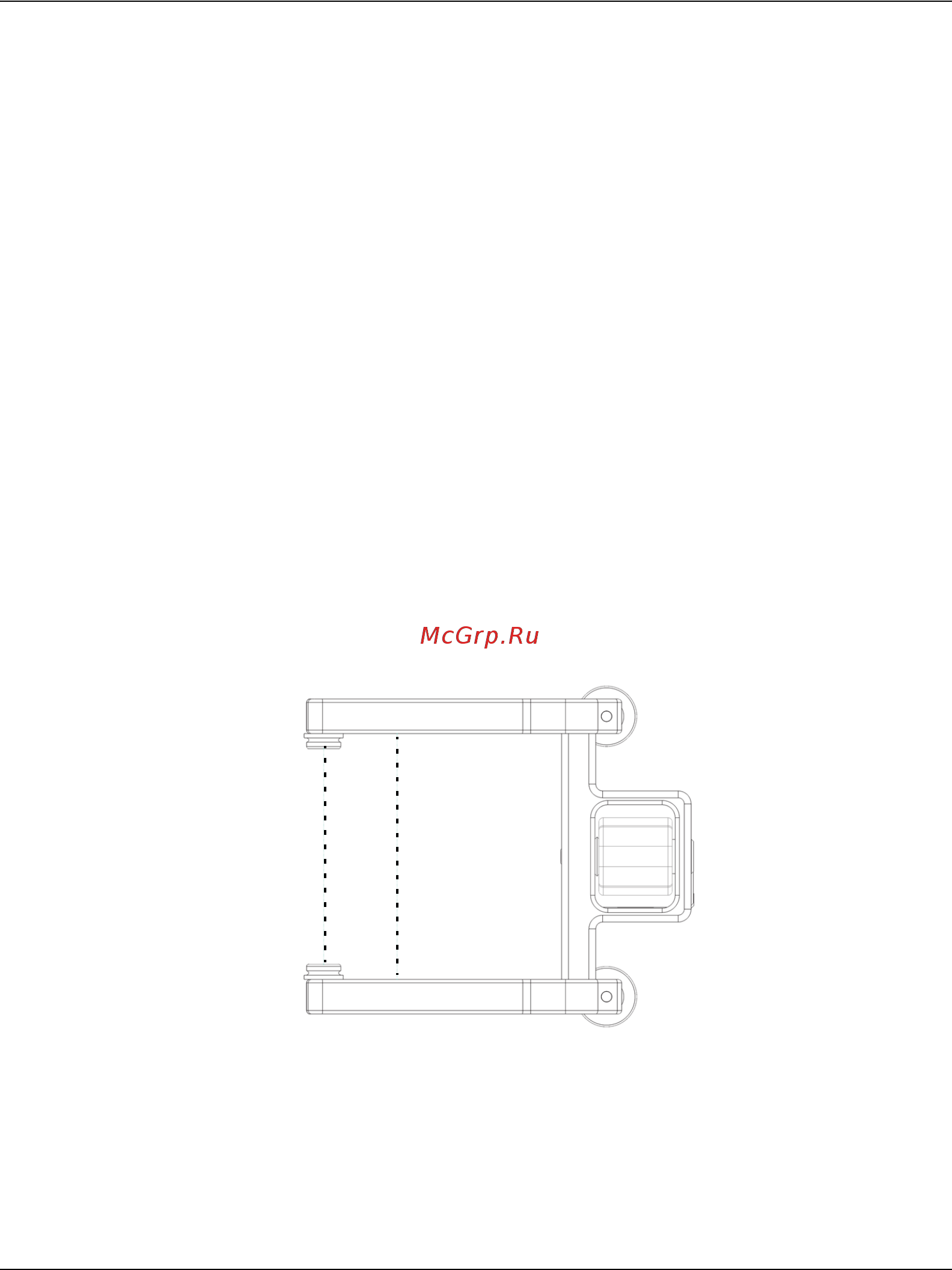

Figure 1-8 Long yoke with maximum (55 mm) wedge width setting
