Overview 21

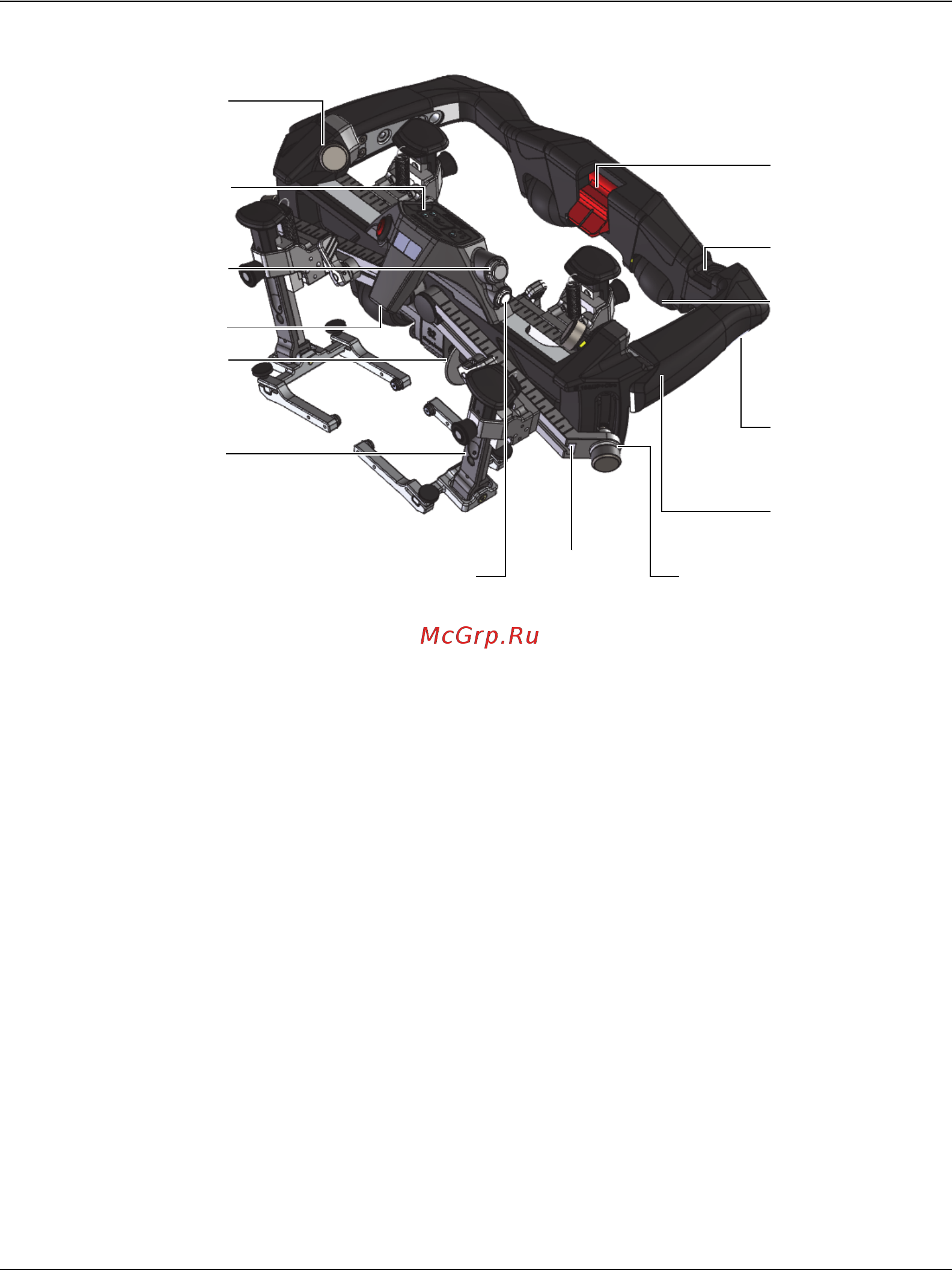

Figure 1-2 The AxSEAM scanner
1.2.1 Frame
The scanner frame is manually moved across an inspection surface by an operator.
Two handle surfaces are provided on the frame to control the scanner.
1.2.2 Longitudinal Inspection Scanning Pivot System
This system is used to adapt to different pipe diameters when scanning in the
longitudinal direction. For the pipe diameters of 406.4 mm (16 in.) and smaller, put
the system at the lowest position. For the pipe diameters greater than 406.4 mm
(16 in.), put the system at the higher position. Depending on the probe model and
separation distance, some configurations may require to have the system set at the
higher position on pipes that are between 406.4 mm (16 in.) OD and 660.4 mm (26 in)
OD.
ScanDeck™
module
Probe holder (up
to two pairs)
Brake
Safety lanyard
attachment
Encoder
Umbilical
attachment
Output connector for
instrument cable
Input connector for
encoder cable
Circumferential
scanning pivot
system
Magnetic
wheel (4)
Handle surfaces (2)
Longitudinal scanning
pivot system
Probe holder
mounting rail
Laser
