Olympus AxSEAM [89/116] Encoder

10-013816-01EN, Rev. 2, June 2020

Spare Parts 81

6.3 Encoder

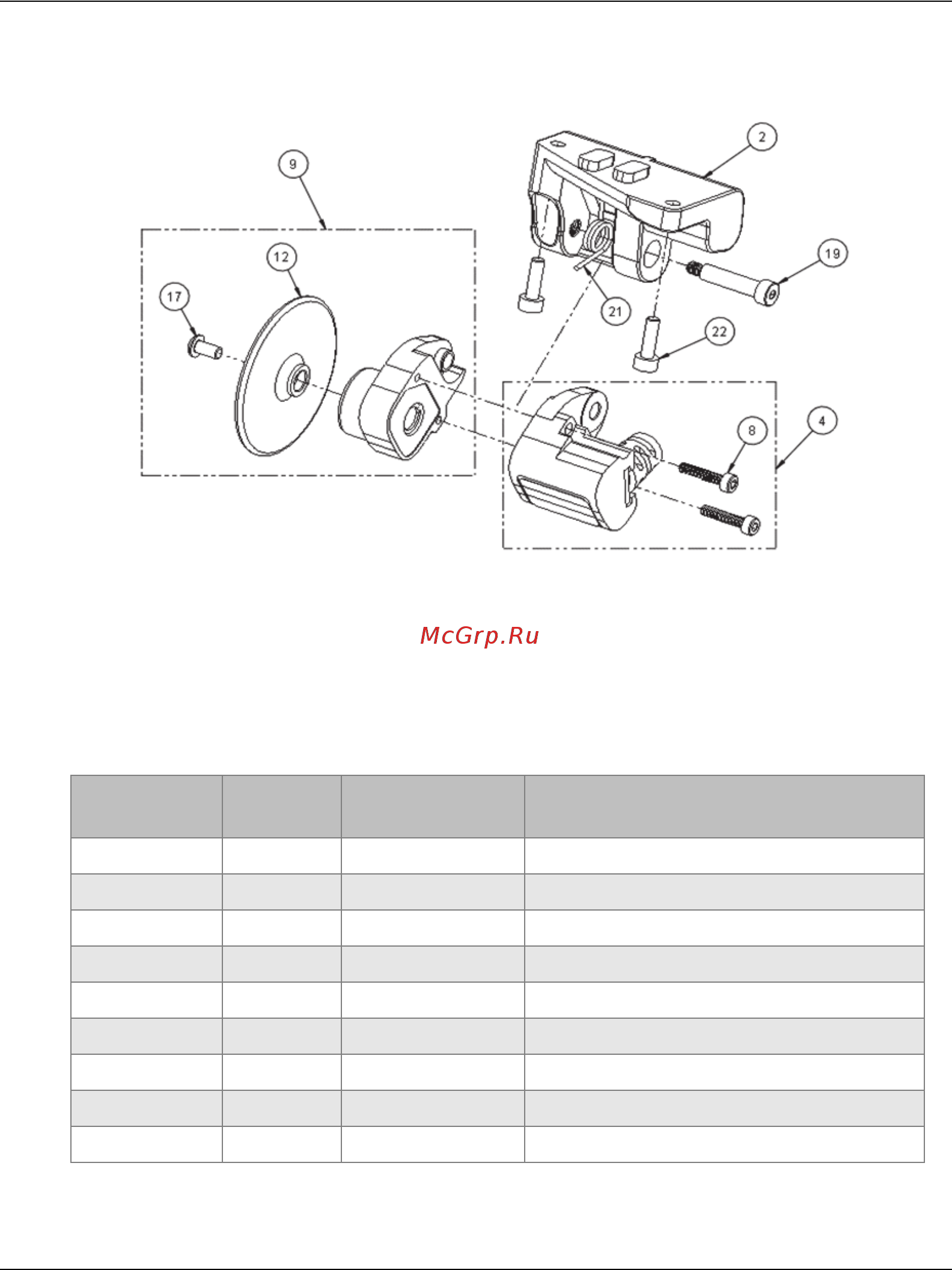

Figure 6-3 Encoder exploded view

Table 5 Encoder spare parts

Drawing

number

Quantity

a. This number represents the typical quantity initially included with your scanner pack-

age.

Part number Description

2 1 Q8301730 Fixation encoder

4 1 Q8301732 Casing encoder electronic

8 2 Q0200585 Screw socket hex M2.5 × 0.45 × 12

9 1 Q8301729 Encoder bearing assembly with wheel

12 1 Q8301728 Wheel encoder

17 1 Q8301428 Socket button head cap screw

19 1 Q8301731 Screw M3-0.5 shoulder Ø4 ×16 mm hex

21 1 Q8301768 Spring torsion 90 deg 0.309 in. OD

22 2 U8908544 Screw M3 ×10 mm stain hex socket cap

①

②

③

④

⑥

⑦

⑧
