Инструкция Страница: 47

Olympus AxSEAM [47/116] To slide the probe holder

10-013816-01EN, Rev. 2, June 2020

Scanner Assembly and Setup 39

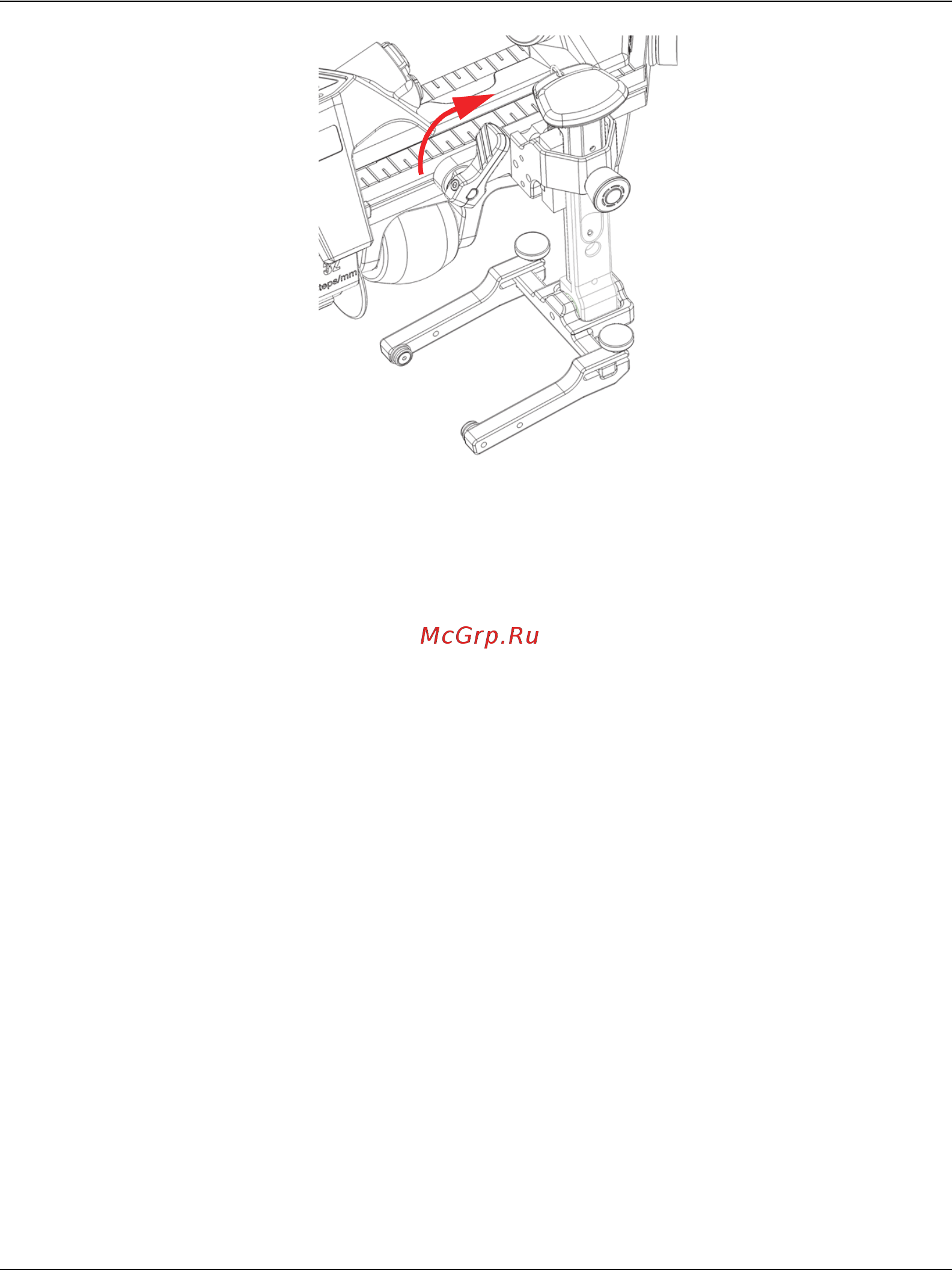

Figure 2-8 Probe holder secured into place

5. To remove the probe holder, unlock the position lever, and pull on the probe

holder with a slight upward or downward motion until it comes out of the rail.

2.4 Sliding the Probe Holder

To slide the probe holder

1. Turn the position lever counterclockwise to unlock the probe holder (Figure 2-9

on page 40).
