10-013816-01EN, Rev. 2, June 2020

Chapter 238

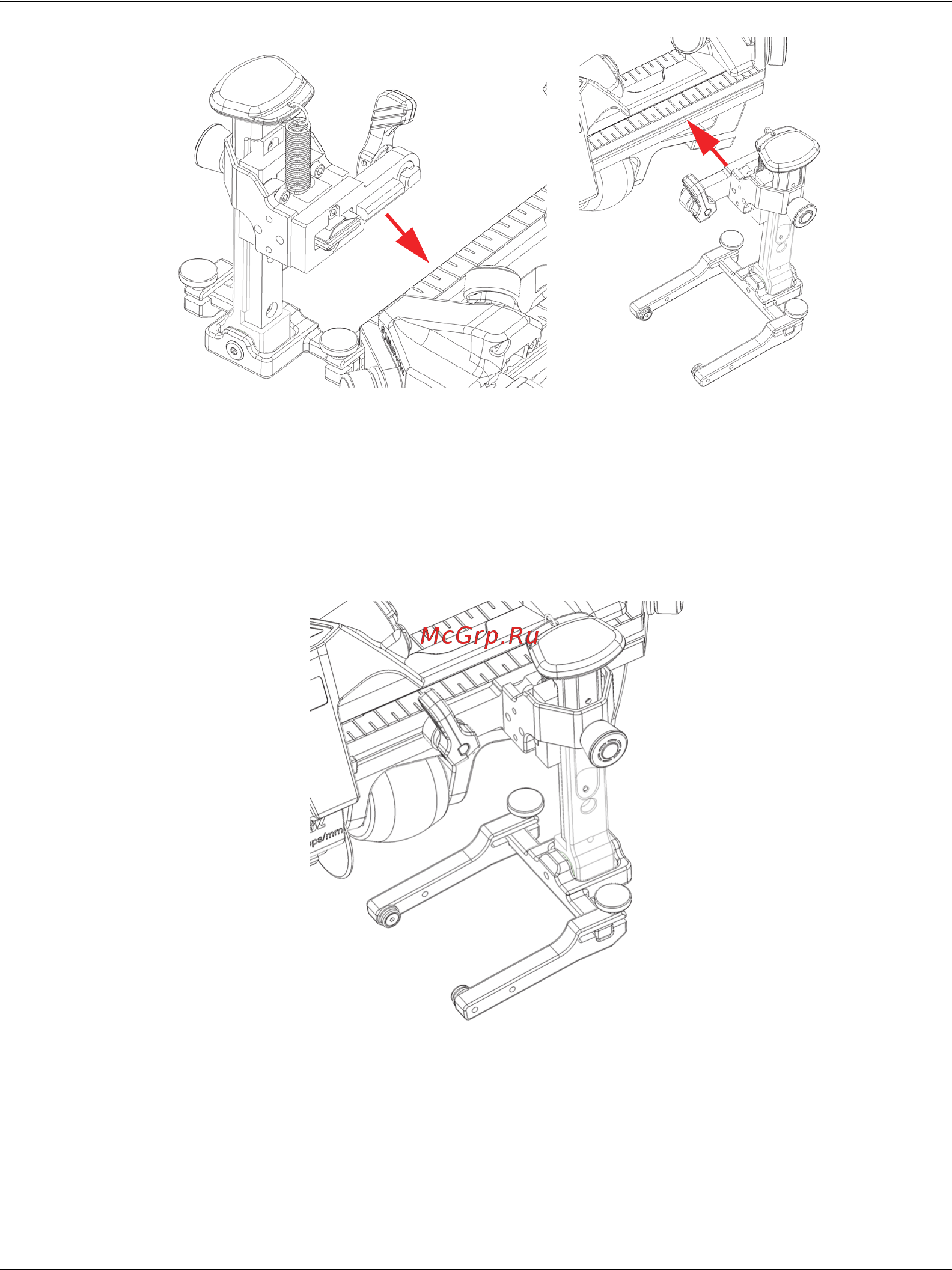

Figure 2-6 Probe holder alignment with the rail slot

3. Firmly press the probe holder into the rail slot, making sure that the cam pin stays

aligned horizontally (Figure 2-7 on page 38).

Figure 2-7 Probe holder inserted into the rail slot

4. Rotate the position lever clockwise to lock the probe holder into place (Figure 2-8

on page 39).
