Olympus AxSEAM [94/116] Cable management

10-013816-01EN, Rev. 2, June 2020

Chapter 686

6.7 Cable Management

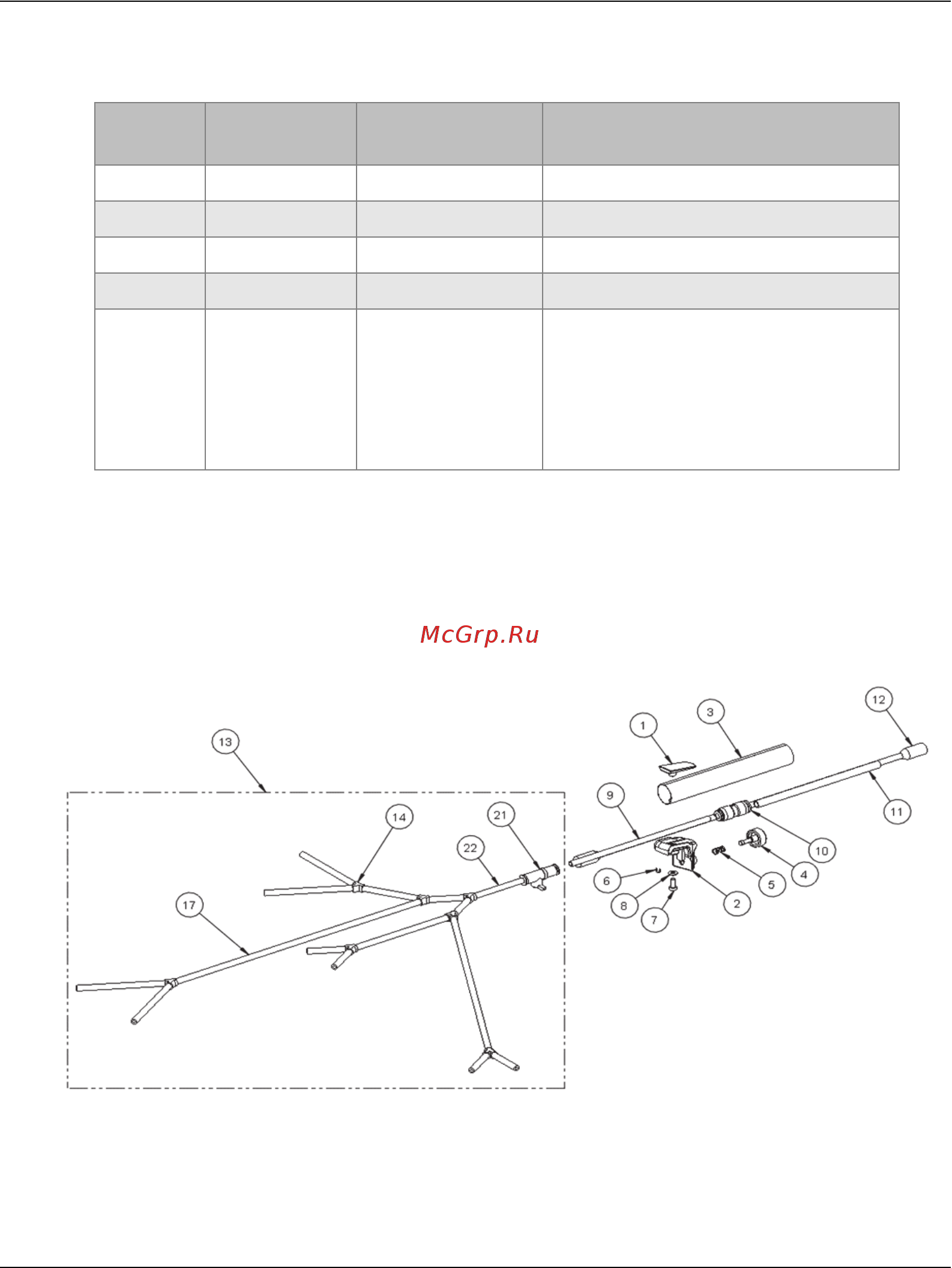

Figure 6-7 Cables management exploded view

Table 8 Phased array yoke arm spare parts

Drawing

number

Quantity

a. This number represents the typical quantity initially included with your scanner

package.

Part number Description

1 1 U8830239 Screw M3 × .5 x 8 fh skt cap 18-8ss

2 1 U8721914 Ø7.8 mm wedge pivot

3 1 Q8301737 Yoke arm 38–55 mm

4 1 Q8301733 Thumb screw M3×10mm raised

N/A

Q8301738

Q8301739

Q7750197

-Yoke arm 38–55 mm left assembly

-Yoke arm 38–55 mm right

assembly

-Pair of yoke arms 38–55 mm left

and right assemblies

①

②

③

⑤

⑥

⑦

⑧

⑩

⑪
