Olympus AxSEAM [27/116] Overview

10-013816-01EN, Rev. 2, June 2020

Overview 19

1. Overview

This chapter provides an overview of the AxSEAM scanner components. The scanner

is shown in Figure 1-2 on page 21. A description of the components follows.

1.1 AxSEAM Case Contents

The AxSEAM scanner case contents are shown in Figure 1-1 on page 19.

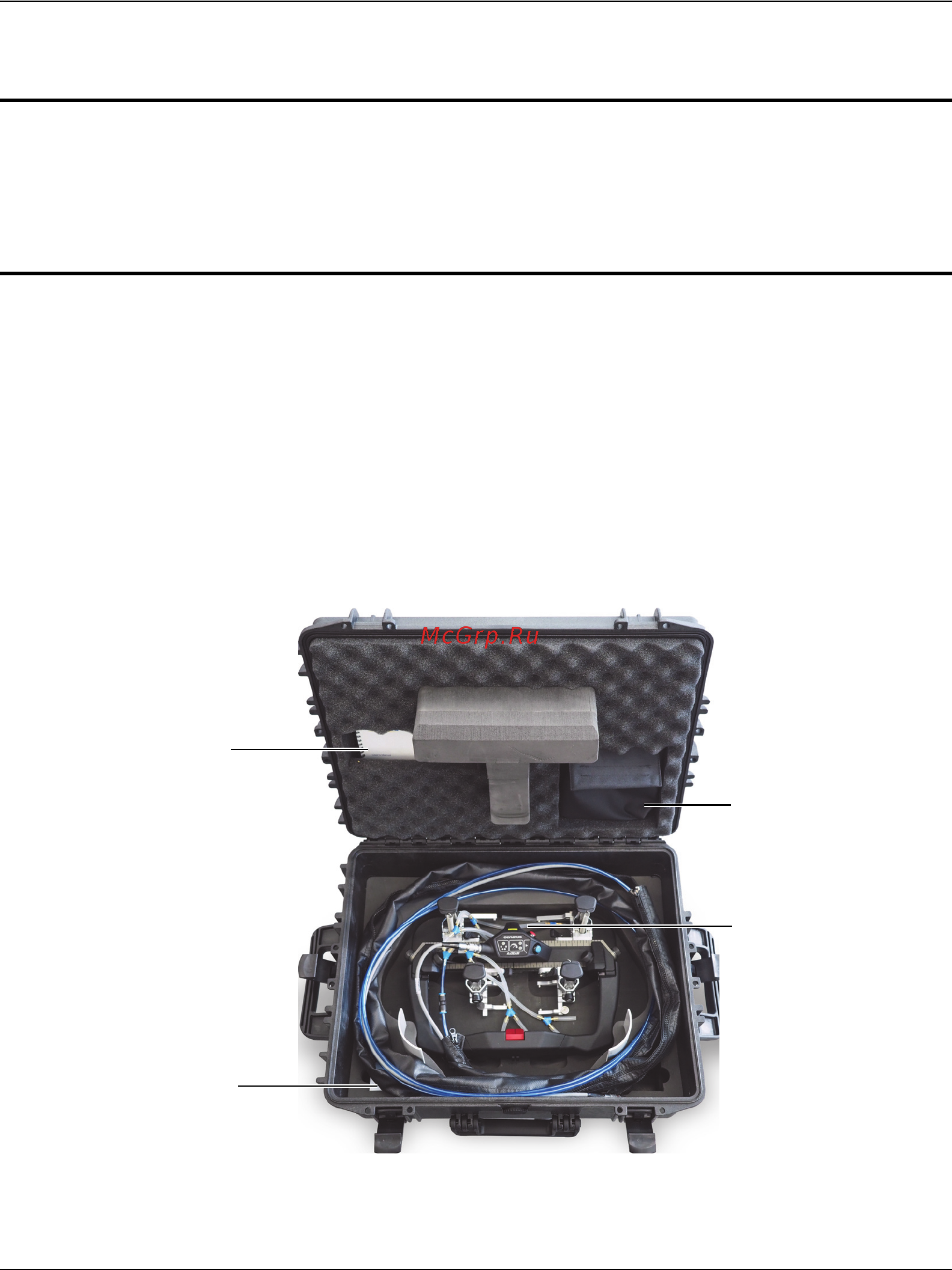

Figure 1-1 Case contents

User’s manual

Spare part

compartments (2)

Storing pouch

Scanner with cables

and tubes
