10-013816-01EN, Rev. 2, June 2020

Chapter 236

When they are loosened enough, the knobs pop out of the threads, remaining

attached to the scanner (Figure 2-4 on page 36).

Do not try to completely remove the knobs from the scanner.

2. Pivot the frame up to the desired position, ensuring that it does not exceed its

maximum travel limit until the knobs snap back into the frame (Figure 2-4 on

page 36).

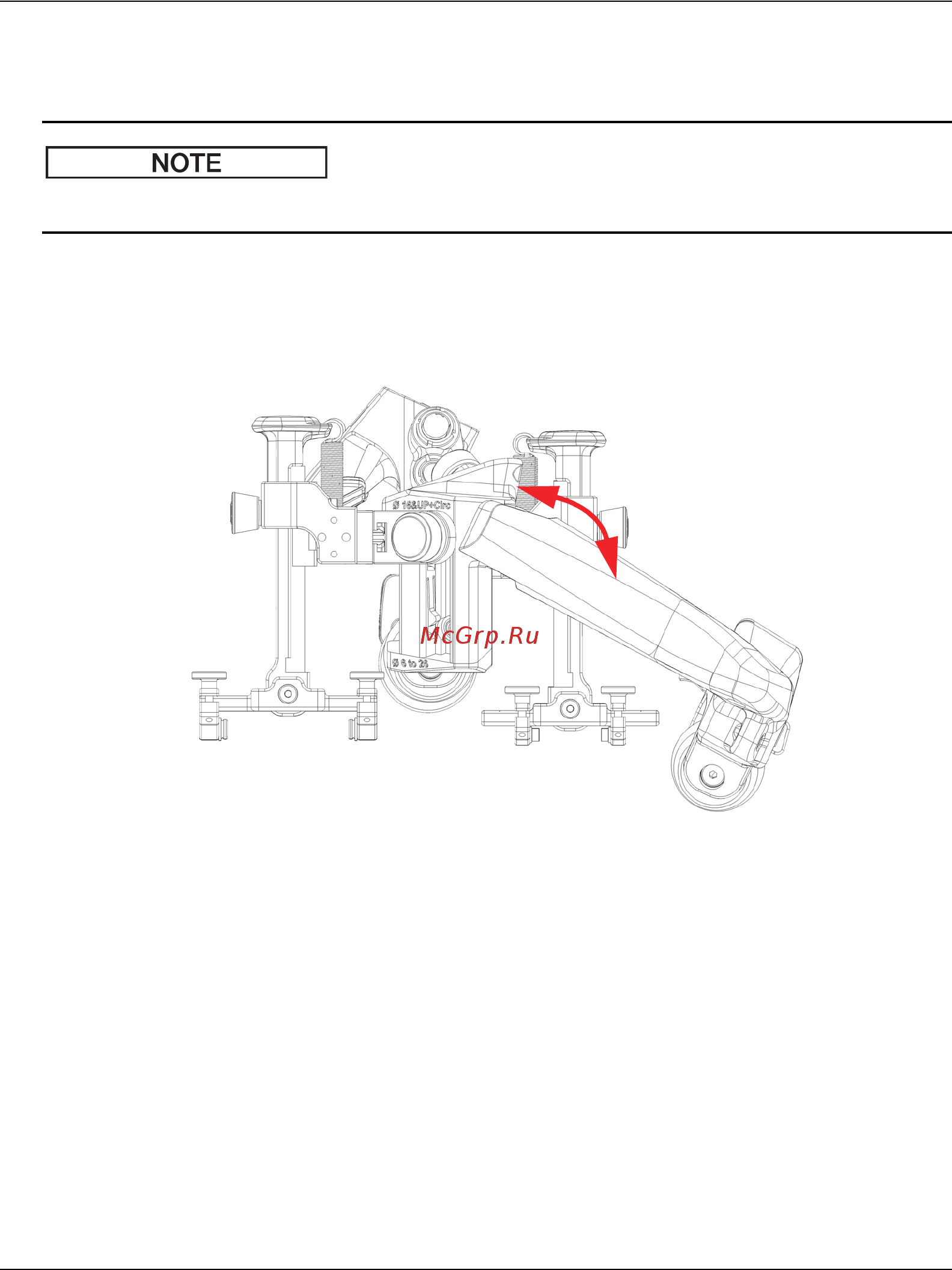

Figure 2-4 Circumferential frame adjustment in pivoted position for pipes of

406.4 mm (16 in.) OD and lower

3. Make sure that the two knobs are properly aligned with their threads, then turn

them clockwise to lock the scanner in the inclined position.

NOTE
